You’ve likely heard of Arduino and Raspberry Pi, two popular platforms for DIY electronics projects. While they’re often mentioned in the same breath, these devices serve different purposes and excel in distinct areas. Comprehending their strengths and weaknesses is pivotal when selecting the right tool for your project. From processing power to operating systems, cost considerations to development environments, there’s a lot to unpack when comparing these two versatile platforms. Whether you’re a hobbyist or a professional, knowing the key differences will help you make an informed decision and open new possibilities in your electronic endeavors.
Key Takeaways
Understanding Arduino and Raspberry Pi
Arduino and Raspberry Pi are popular platforms for electronics projects, but they’re quite different. Arduino is a microcontroller-based system, while Raspberry Pi is a microprocessor-based single-board computer. Arduino’s heart is the ATmega328P chip, which combines a CPU, memory, and input/output controls. It’s great for simple, repetitive tasks like blinking LEDs or reading sensors. For example, you might use an Arduino to control a robot’s motors or monitor a plant’s soil moisture.
Raspberry Pi, however, is more like a tiny computer. It uses ARM Cortex-A processors, which are more powerful than Arduino’s chip. You can run a full operating system on a Raspberry Pi, surf the web, and even play games. It’s perfect for projects that need more computing power, like a home media server or a weather station that uploads data to the internet.
When choosing between Arduino and Raspberry Pi, think about what you want to do. If you’re making a simple device that does one job over and over, like a thermostat, Arduino’s your best bet. But if you need something that can handle complex tasks, like processing video or running multiple programs at once, go for a Raspberry Pi.
Both platforms are great for learning about electronics and coding. Arduino’s simpler setup makes it easier for beginners to get started. You can write code in the Arduino IDE and upload it directly to the board. Raspberry Pi requires a bit more setup, but it offers a full Linux environment, which can be a valuable learning experience.
In short, Arduino’s strength lies in its simplicity and ability to interact directly with sensors and actuators. Raspberry Pi shines when you need more processing power and the flexibility of a full computer operating system. Understanding these differences will help you pick the right tool for your project.
Processing Power Comparison
Processing power comparison between Arduino and Raspberry Pi reveals significant differences in their capabilities and applications. Arduino’s microcontroller-based design operates at a modest 16 MHz clock speed, ideal for straightforward tasks like reading sensors and controlling motors.
Raspberry Pi, functioning as a miniature computer, boasts a robust 1.5 GHz clock speed in its Pi 4 Model B version.
RAM capacity further highlights the processing gap between these platforms. Arduino boards typically feature 2-8 KB of RAM, while Raspberry Pi 4 Model B offers a whopping 1 GB. This vast memory difference allows Raspberry Pi to handle complex operations such as processing images, playing videos, and performing advanced calculations.
Arduino’s single-circuit microcontroller shines in real-time control applications, providing a user-friendly programming interface. It’s perfect for projects like automated plant watering systems or simple LED displays.
Raspberry Pi runs a full operating system, enabling more sophisticated software development and greater customization. You might use a Raspberry Pi for a home media server or a DIY smart home hub.
When choosing between Arduino and Raspberry Pi, you’ll need to consider your project’s specific needs. Think about the processing power required, memory needs, and the complexity of the software you’ll be using. For instance, if you’re building a basic temperature monitoring system, an Arduino might be sufficient. But if you’re creating a facial recognition doorbell, you’d likely need the extra power of a Raspberry Pi.
Both platforms have their strengths, and understanding these differences will help you pick the right tool for your project. Remember, it’s not about which one is better overall, but which one is better suited for your specific task.
Operating System Differences
Operating system differences between Arduino and Raspberry Pi are significant. Arduino runs without a dedicated OS, executing code directly on its microcontroller board. This bare-metal approach makes Arduino user-friendly and perfect for real-time control projects.
Raspberry Pi, however, supports full-fledged operating systems, typically Linux-based ones like Raspberry Pi OS, Ubuntu, or Debian. Raspberry Pi’s OS gives it more versatility and advanced features, letting it handle complex tasks such as:
- Web servers
- Media centers
- AI applications
- Database management
- Multi-tasking operations
Arduino’s lack of an OS means direct programming through its IDE, making it ideal for quick-response projects and simple control functions. For instance, an Arduino board can quickly toggle LEDs or read sensor data without OS overhead. Raspberry Pi’s OS-based structure, on the other hand, opens up a world of possibilities for sophisticated applications. You could use a Raspberry Pi to create a smart home hub that controls multiple devices and processes data simultaneously.
When picking between Arduino and Raspberry Pi, think about your project’s needs. Arduino’s simplicity shines in basic control tasks, like automating a garden watering system. Raspberry Pi’s full OS capabilities suit complex, multi-faceted projects, such as building a retro gaming console that can also stream media. Your choice should depend on the processing power, memory, and software complexity your specific application requires.
Arduino’s microcontroller, like the ATmega328P, has limited resources but excels in power efficiency and real-time responsiveness. It’s great for battery-operated devices or time-sensitive applications. Raspberry Pi’s processor, such as the Broadcom BCM2711 in the Pi 4, offers more computing power but consumes more energy. It’s better suited for projects that need a graphical interface or internet connectivity.
In terms of programming, Arduino uses C++ with its own libraries, while Raspberry Pi supports various languages like Python, Java, and C++. This flexibility makes Raspberry Pi a favorite for software development and learning computer science concepts. Arduino’s simpler environment is often preferred for electronics and embedded systems projects.
Cost is another factor to consider. Arduino boards are generally cheaper, with some models costing under $10. Raspberry Pi boards are pricier, starting around $35 for the basic model. However, Raspberry Pi’s additional features might save money in the long run for more complex projects.
Cost Analysis
Cost analysis is crucial when choosing between Arduino and Raspberry Pi. Arduino boards are cheaper than Raspberry Pi devices due to their simpler design. Arduino’s focus on specific tasks and Raspberry Pi’s advanced capabilities explain this price difference.
Arduino boards start at $5 for basic models, making them great for hobbyists and makers on a budget. You can find entry-level Arduinos like the Arduino Nano Every or Arduino Uno R3 for under $20. These boards are perfect for simple projects like LED controllers or temperature sensors.
Raspberry Pi models cost between $35 to $75, depending on features. The Raspberry Pi 4 Model B, for example, ranges from $35 to $75 based on its RAM. It’s pricier but offers more power, memory, and a full operating system. This makes it ideal for complex projects like home automation hubs or media centers.
When picking between these platforms, think about what you need and how much you can spend. If you’re working on a basic robot or a smart garden system, Arduino’s low cost might be best. But if you want to build a retro gaming console or a weather station, Raspberry Pi’s extra features could be worth the higher price.
Your choice depends on balancing your project’s needs with your wallet. Remember, you’ll also need to factor in the cost of accessories like sensors, cables, and power supplies for both platforms. These extras can add up, so plan your budget carefully.
Application Scenarios
Application scenarios for Arduino and Raspberry Pi are distinct and based on project requirements. Arduino excels in real-time control and device interfacing, making it ideal for IoT and home automation. It’s perfect for tasks needing direct interaction with sensors and actuators through GPIO pins due to its low power use and simplicity.
Raspberry Pi, with its robust processor, suits computationally demanding tasks better. It’s the top pick for projects requiring:
- Complex data analysis
- Multimedia processing
- Web hosting
- Entertainment hubs
- Sophisticated AI applications
When picking between the two, consider your project’s needs. Arduino’s your best bet for real-time control and simple physical component interfacing. For projects needing more processing power and OS flexibility, Raspberry Pi’s the superior choice.
Arduino shines in quick response times and direct hardware control. Raspberry Pi offers a full OS environment, allowing for advanced software development and multitasking. Choose based on your project’s specific demands and complexity.
Examples:
- Arduino: Smart thermostat, automated plant watering system
- Raspberry Pi: Home security camera with facial recognition, retro gaming console
Both platforms have unique strengths. Arduino’s simplicity makes it great for beginners, while Raspberry Pi’s versatility appeals to more experienced makers. Your choice depends on your project’s goals, your skill level, and the resources you have available.
Development Environments
Development environments shape your Arduino and Raspberry Pi project experience. These platforms offer distinct programming interfaces tailored to their capabilities.
Arduino’s simplified IDE, based on C/C++, is beginner-friendly. It’s easier to start with Arduino’s streamlined environment, which has a lower learning curve. For example, you can quickly write and upload a program to blink an LED using just a few lines of code.
Raspberry Pi’s development environment is more versatile. It supports multiple programming languages like Python, C++, and Java. This flexibility allows you to tackle complex projects, such as creating a home automation system or a weather station.
| Feature | Arduino | Raspberry Pi |
|---|---|---|
| IDE | Simplified | Versatile |
| Languages | C/C++ | Python, C++, Java, etc. |
| Learning Curve | Lower | Higher |
| Flexibility | Limited | Extensive |
Your choice between Arduino IDE and Raspberry Pi’s environment depends on your programming skills and project complexity. If you’re new to microcontrollers, Arduino’s simplicity might appeal to you. You can create basic projects like temperature sensors or LED controllers with ease.
However, if you want advanced capabilities and don’t mind a steeper learning curve, Raspberry Pi’s flexibility could suit you better. It lets you build sophisticated projects like robotics or machine learning applications.
Consider your project needs and coding expertise when picking a development environment. Arduino is great for quick, simple projects, while Raspberry Pi shines in more complex, computer-like tasks. Both platforms have active communities and extensive resources to help you learn and troubleshoot.

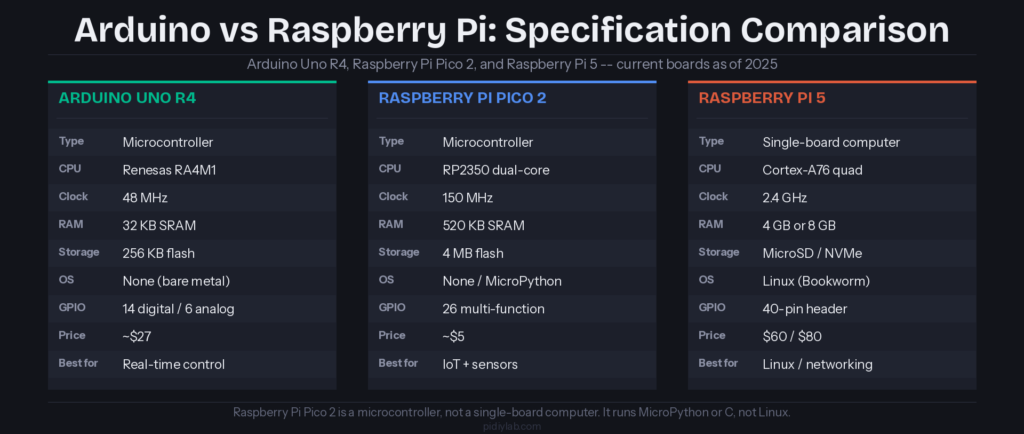

Side-by-Side Feature Comparison
Side-by-side feature comparison is a crucial method for evaluating Arduino and Raspberry Pi’s distinct capabilities. Arduino, a microcontroller board, and Raspberry Pi, a single-board computer, serve different purposes in the world of electronics and computing.
Arduino excels in simplicity and real-time control, making it perfect for robotics and Internet of Things (IoT) projects. Raspberry Pi offers greater processing power and versatility, suited for complex applications like media centers and artificial intelligence.
Key differences include:
- Processing power: Raspberry Pi’s CPU outperforms Arduino’s microcontroller
- Operating system: Arduino runs basic firmware, while Raspberry Pi supports full-fledged operating systems like Linux
- Programming interface: Arduino uses a simplified C++ environment, Raspberry Pi allows various languages
- Cost: Arduino boards are generally cheaper than Raspberry Pi models
- Learning curve: Arduino’s simpler architecture is beginner-friendly, Raspberry Pi requires more technical knowledge
Arduino shines in quick prototyping and real-time responsiveness. It’s great for reading sensors and controlling motors efficiently. For example, an Arduino can easily manage a smart home thermostat or a line-following robot.
Raspberry Pi excels in scenarios demanding higher computational power. It can run complex software applications and support multiple programming languages. A Raspberry Pi could power a retro gaming console or serve as the brain of a DIY smart mirror.
Your choice between these platforms depends on your project’s specific needs and your coding expertise. Arduino suits simpler, dedicated tasks, while Raspberry Pi handles more diverse, computer-like functions.
![Arduino UNO R4 WiFi [ABX00087] - Renesas RA4M1 / ESP32-S3 - Wi-Fi...](https://m.media-amazon.com/images/I/416S910MpBL._SL500_.jpg)
- The Arduino UNO R4 WiFi combines the processing power and exciting new peripherals of the RA4M1 microcontroller from Ren…
- Expanded memory and faster clock with extra on-board peripherals: The UNO R4 WiFi empowers you with increased memory and…
- Hardware compatibility with UNO hardware and larger input voltage range: The UNO R4 WiFi maintains hardware compatibilit…
Frequently Asked Questions
Is a Raspberry Pi or Arduino Better?
Your choice depends on your project’s needs. If you’re doing simple control tasks, Arduino’s better. For complex applications needing more processing power, go with Raspberry Pi. Consider factors like cost, connectivity, programming flexibility, and real-time control requirements.
Can Raspberry Pi Do Everything Arduino Can?
No, Raspberry Pi can’t do everything Arduino can. While it’s more powerful, Arduino excels at real-time control and low-level hardware tasks. You’ll find Arduino better for embedded systems, while Raspberry Pi shines in complex computing applications.
What Are the Similarities Between Arduino and Raspberry Pi?
You’ll find Arduino and Raspberry Pi share several similarities. They’re both open-source platforms, support various programming languages, and have active online communities. They’re user-friendly, versatile for diverse projects, and popular among hobbyists, makers, and students.
Is Arduino the Best Microcontroller?
Arduino isn’t necessarily the best microcontroller, but it’s often an excellent choice. Your project’s needs will determine the ideal option. Consider factors like processing power, I/O capabilities, and ease of use when selecting a microcontroller platform.
