The Raspberry Pi weather station is a versatile project that allows users to monitor environmental conditions using low-cost hardware and customizable software. By integrating sensors with a Raspberry Pi, you can collect essential weather data, such as temperature, humidity, wind speed, and more. These stations can serve a variety of purposes, including home automation, environmental monitoring, and agriculture. The flexibility of a Raspberry Pi allows for real-time data acquisition, storage, and visualization. Whether you’re an enthusiast, a student, or a professional, building a weather station can help you explore the world of electronics, sensor networks, and programming.
Key Takeaways
Choosing the Right Raspberry Pi for Your Weather Station
When building a weather station with Raspberry Pi, selecting the right model is crucial. The choice depends on factors such as power consumption, processing needs, and network connectivity. Below are the most suitable Raspberry Pi models for various weather station applications.
The Raspberry Pi 4 is ideal for projects requiring significant processing power. With up to 8GB of RAM, it can handle complex tasks such as data analysis, running a Grafana dashboard, or managing a large number of sensors. Its USB 3.0 ports enable fast data transfer, and its Ethernet port provides a stable internet connection. The Pi 4 is well-suited for weather stations that require continuous data logging and advanced data visualization.
Raspberry Pi Zero W
For more compact and energy-efficient setups, the Raspberry Pi Zero W is a great choice. It offers Wi-Fi connectivity and is small enough for portable or remote installations. Despite its size, the Zero W can still manage essential tasks like collecting data from temperature and humidity sensors. Its lower power consumption makes it perfect for off-grid stations powered by solar panels or battery packs.
Raspberry Pi Pico
If your weather station focuses on basic data logging without a need for advanced operating systems, the Raspberry Pi Pico is a good option. As a microcontroller, it excels at handling real-time data collection with very low power requirements. The Pico can interface with multiple sensors, making it useful for small, focused weather monitoring systems, especially in locations where power is a concern.
Connectivity and Power Considerations
- Wi-Fi is typically used for transmitting data to a cloud server or web interface, while Ethernet is ideal for stable connections in fixed locations.
- When choosing a model, also consider the available GPIO pins for sensor integration. Most models provide sufficient GPIO ports for connecting common sensors like the DHT22 and BMP180.
- Lastly, think about power sources: if the station will be remote, using a solar panel or battery pack is essential to ensure continuous operation.
Essential Sensors for Weather Data Collection
A Raspberry Pi weather station relies on various sensors to measure environmental conditions. These sensors gather crucial weather parameters such as temperature, humidity, pressure, and more. Below are the key sensors commonly used in a weather station and how they contribute to real-time data monitoring.
DHT22 (Temperature and Humidity Sensor)
The DHT22 sensor is one of the most popular choices for measuring temperature and humidity. It’s affordable, reliable, and easy to interface with the Raspberry Pi using its GPIO pins. The DHT22 offers high accuracy for both parameters, making it suitable for general weather monitoring.
- Temperature Range: -40°C to +80°C
- Humidity Range: 0-100% RH
- Communication Protocol: One-wire
BMP180 (Barometric Pressure Sensor)
The BMP180 sensor is excellent for measuring air pressure. Barometric pressure is a key metric for weather prediction, especially for identifying potential storms. This sensor is connected to the Pi via the I2C protocol, making it simple to integrate.
- Pressure Range: 300 to 1100 hPa
- Additional capability: Temperature measurement
- Communication Protocol: I2C
- BMP180 is a high-precision, small size, ultra-low power pressure sensor that can be used in mobile devices, to measure t…
- Its performance excellence, the absolute accuracy of the lowest can reach 0.03hPa, and low power consumption, only 3μA.
- BMP180 uses a powerful 8-pin leadless ceramic chip can be directly connected with a variety of microprocessor via I2C.

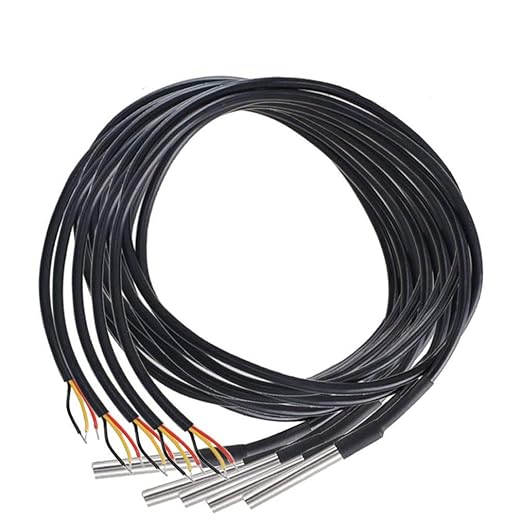

DS18B20 (Temperature Sensor)
The DS18B20 is a digital thermometer capable of precise temperature measurements. It’s particularly useful in environments requiring high accuracy. It can be used to measure the temperature of the surrounding air or even water in more specialized weather setups.
- Temperature Range: -55°C to +125°C
- Communication Protocol: One-wire
- Unique feature: Can be connected in parallel with multiple sensors on a single GPIO pin.
- Operating temperature range:-55 ℃ to +125 ℃ (-67 ℉ to +257 ℉)
- Storage temperature range:-55 ℃ to +125 ℃ (-67 ℉ to +257 ℉)
- Power supply range: 3.0V to 5.5V
Wind Speed and Wind Direction Sensors
Monitoring wind speed and direction is vital in comprehensive weather stations. These sensors typically use reed switches or optical encoders to measure wind speed, and potentiometers or magnetometers to determine direction.
- Wind Speed Measurement: Anemometer (measured in km/h or mph)
- Wind Direction Measurement: Wind vane (measured in degrees)
Rain Gauge
A rain gauge measures rainfall over time, typically by collecting water in a tipping bucket that sends signals to the Raspberry Pi when full. This sensor is key for monitoring precipitation levels in weather stations aimed at agricultural or environmental research.
- Output: Digital pulses indicating a certain volume of rainfall (e.g., 0.3mm per tip)
- Communication Protocol: Pulse counting via GPIO
- Judge a series of exposed parallel water sutures to measure the water gauge by the water level.
- Application rain detection, liquid leakage overflow detector.
- Made of printed circuit board electrical components, the internal conductor is pure copper. It is durable and available …
UV Index Sensor
To measure solar radiation and UV exposure, the UV Index sensor is useful, especially for weather stations used in regions with high sun exposure. It helps in calculating the UV Index, which is important for health-related applications such as skin protection alerts.
- Measurement Range: UV Index 0 to 11+
- Communication Protocol: I2C

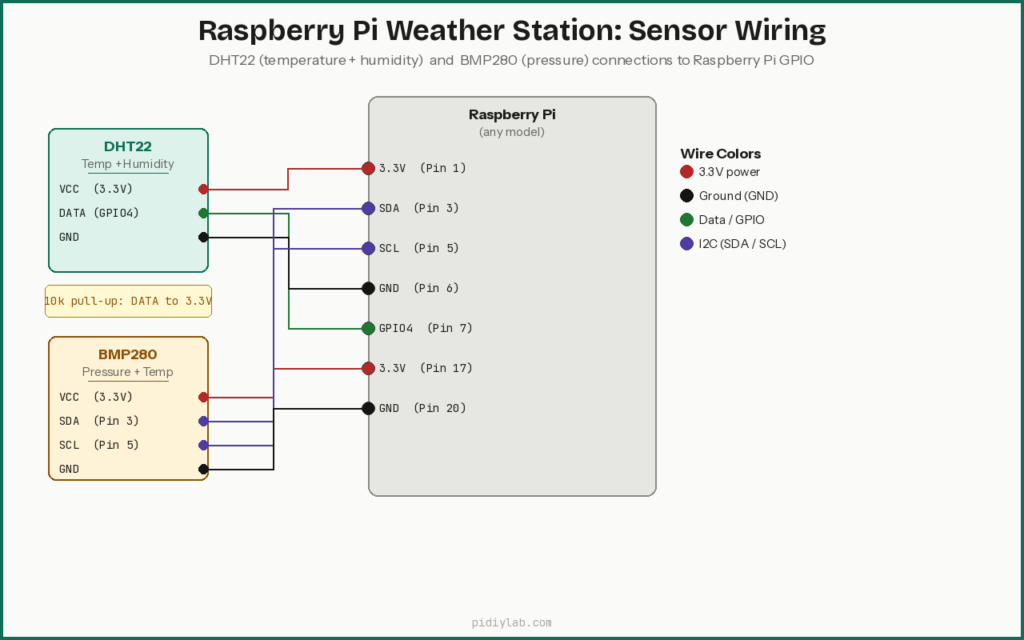

Integration with Raspberry Pi
- Most of these sensors use simple communication protocols like I2C, SPI, or One-wire, which makes them easy to interface with the Raspberry Pi.
- Connecting these sensors to the GPIO pins is straightforward, and you can use libraries like Adafruit_Python_DHT for the DHT22 or the PiGPIO library for general GPIO control.
With these sensors connected and properly configured, your Raspberry Pi weather station can measure and report on key weather parameters like temperature, humidity, wind speed, rainfall, and more, giving you valuable insights into local weather patterns.
- The UV Sensor (C) is an I2C digital UV sensor module which incorporates LTR390-UV-01, designed for measuring ultraviolet…
- With features including sensitive detection, fast response, and small form factor, the UV Sensor (C) integrates the main…
- I2C control interface: supports host boards including Raspberry Pi/Arduino/STM32. Embedded ADC, direct light intensity v…
Setting Up the Power Supply and Managing Power Consumption
Setting up the power supply correctly ensures that your Raspberry Pi weather station operates continuously, especially if it’s collecting and transmitting data around the clock. The power needs of the Raspberry Pi and connected sensors can vary, depending on the complexity of your setup and whether the station is located in a remote area.
Standard Power Supply Options
The most common and straightforward way to power a Raspberry Pi is through a 5V power supply, delivered via USB-C (for Raspberry Pi 4) or Micro USB (for older models like the Raspberry Pi 3). This method is ideal for weather stations located indoors or in areas with easy access to electricity.
- Raspberry Pi 4: Requires a USB-C 5V 3A power supply for optimal performance.
- Raspberry Pi Zero W: Can operate with lower power, requiring just a 5V 1A Micro USB power supply.
Off-Grid Power Solutions
For remote or outdoor weather stations, where access to a power grid isn’t feasible, alternative power solutions are essential. These include:
Solar Power
Using solar power is a popular choice for powering off-grid weather stations. Solar panels can provide enough energy to run the Raspberry Pi and sensors during the day while charging a battery pack that powers the station overnight.
- Recommended Solar Panel Rating: A 10W or 20W solar panel paired with a 5V power management board is typically sufficient for a Raspberry Pi Zero W setup.
- Charge Controller: Manages power flow between the solar panel, battery, and Raspberry Pi, preventing overcharging.
Battery Packs and UPS
Battery packs offer a portable power solution, and using them alongside an Uninterruptible Power Supply (UPS) ensures that your weather station stays online, even during power outages. This is critical for remote monitoring or during storms when power disruptions are common.
- Lithium-ion battery packs (e.g., 10,000mAh) are often used in weather stations where power supply stability is a concern.
- UPS HATs for Raspberry Pi ensure continuous operation, with smooth transitions between grid power and battery backup.
Reducing Power Consumption
Managing power consumption is key, especially for remote stations relying on batteries or solar energy. Some techniques to reduce power usage include:
- Disabling HDMI output: If no display is needed, disable HDMI to save power.
- Command:
tvservice -oto turn off HDMI.
- Command:
- Disabling Wi-Fi and Bluetooth when not required.
- Command:
sudo ifconfig wlan0 downto turn off Wi-Fi.
- Command:
- Use of power-efficient models like the Raspberry Pi Zero W, which consumes significantly less power than a Raspberry Pi 4.
Monitoring Power Usage
Using a USB power meter allows you to monitor the real-time power consumption of your weather station setup. This data can help optimize the system to ensure energy efficiency, especially for off-grid deployments.
- Power Management HATs can also provide additional functionality by allowing you to control power distribution between the Raspberry Pi and other components like sensors.
With proper power supply management, your Raspberry Pi weather station can operate continuously in various environments, whether it’s indoors, off-grid, or in areas with unstable electricity.
Communication Protocols for Weather Stations
Communication Protocols for Weather Stations enable data transmission, storage, and sharing after your Raspberry Pi weather station begins collecting measurements. Several protocols are available for connecting your weather station to other devices or cloud platforms. The protocol selection depends on factors like range, power consumption, and bandwidth requirements.
Wi-Fi (Wireless LAN)
Wi-Fi is one of the most common communication methods for Raspberry Pi weather stations. It allows the station to connect to the internet, enabling data transmission to cloud storage, web servers, or remote dashboards.
- Applications: Suitable for indoor or nearby outdoor setups with stable Wi-Fi coverage.
- Data Transfer: Supports high-bandwidth data, ideal for transmitting large datasets or using real-time dashboards like Grafana.
- Setup: Configuring Wi-Fi on the Raspberry Pi requires setting up SSID and password in the system’s network configuration files, especially if running in a headless mode.
- Example: Modify
/etc/wpa_supplicant/wpa_supplicant.confto add your Wi-Fi credentials.
- Example: Modify
MQTT (Message Queuing Telemetry Transport)
MQTT is a lightweight messaging protocol ideal for IoT applications like weather stations. It operates on a publish-subscribe model, where the weather station (client) publishes data to a broker. Other clients, such as data storage systems or dashboards, can subscribe to these updates.
- Applications: MQTT is excellent for sending sensor data in near real-time with minimal bandwidth. It’s particularly useful for remote weather stations or smart home integration.
- Benefits: Lightweight and designed for devices with limited resources, such as the Raspberry Pi Zero W.
- Setup: Popular brokers include Mosquitto and Eclipse Paho. A simple Python script can use the
paho-mqttlibrary to publish sensor data:
import paho.mqtt.client as mqtt
client = mqtt.Client()
client.connect("mqtt_broker_address", 1883, 60) client.publish("weather_station/temperature", "25.6")LoRa (Long Range)
LoRa is a long-range, low-power wireless protocol designed for communication over great distances, up to 10-15 kilometers in open areas. It’s perfect for remote weather stations where internet connectivity is not available but data still needs to be transmitted.
- Applications: Best for rural or off-grid locations with no access to Wi-Fi or cellular networks.
- Benefits: Low power consumption and long-range communication, making it ideal for battery-powered or solar-powered weather stations.
- Drawbacks: LoRa is limited in terms of data transfer speed and bandwidth, so it is better suited for small data packets such as temperature or humidity readings.
- Setup: LoRa modules, such as the RAK811 or SX1278, can be connected to the Raspberry Pi via UART or SPI.
Zigbee
Zigbee is another low-power, low-data-rate wireless communication protocol designed for short- to medium-range applications, typically within 100 meters. It’s suitable for local weather stations transmitting data to a nearby base station or IoT hub.
- Applications: Ideal for use in smart homes or smart cities, where multiple weather stations could be part of a larger network.
- Benefits: Low power usage and mesh networking capabilities allow multiple devices to relay data to one another.
- Drawbacks: Limited range compared to LoRa, and less suited for standalone, remote weather stations.
- Setup: Zigbee modules like XBee or CC2530 can be integrated with Raspberry Pi through USB or UART.
Bluetooth
Bluetooth is useful for short-range data transmission, typically for personal weather stations or educational projects. It’s best suited for scenarios where you want to transfer weather data from the Raspberry Pi to a nearby device, like a smartphone or tablet.
- Applications: Local weather stations that transmit data to nearby devices or collect weather data for short periods.
- Setup: Simple Bluetooth scripts using BlueZ stack on Raspberry Pi can help pair the station with a device and send sensor readings.
HTTP (Hypertext Transfer Protocol)
HTTP is used to send data to web servers or cloud platforms through POST requests. Many weather APIs use HTTP for data exchange, allowing you to integrate your weather station with platforms like OpenWeatherMap or your own custom web application.
- Applications: Suitable for creating a web-based weather dashboard where users can view real-time sensor data.
- Benefits: Works with most web services and cloud platforms. HTTP is also easy to implement using Python’s
requestslibrary. - Setup: A simple HTTP POST example for sending temperature data to a web server:
import requests url = 'http://yourserver.com/weatherdata' data = {'temperature': 25.6, 'humidity': 60} response = requests.post(url, data=data)Cellular (4G/LTE)
For remote stations with no access to Wi-Fi or long-range communication, using a cellular 4G dongle or LTE module allows the weather station to transmit data over cellular networks. This is especially useful for locations that require real-time data but have no infrastructure for other network solutions.
- Applications: Remote, mobile, or offshore weather stations that require real-time monitoring.
- Setup: USB 4G modems or HATs like the Sixfab 4G LTE Base Shield enable mobile data connectivity for the Raspberry Pi.
By selecting the right communication protocol, your Raspberry Pi weather station can efficiently transmit data based on your project’s needs. Each protocol has its strengths and limitations, making it important to choose based on factors like range, data size, and power efficiency.
Installing and Configuring the Operating System
Once you have the hardware and sensors set up for your Raspberry Pi weather station, the next crucial step is installing and configuring the appropriate operating system. The operating system manages your sensor communication, data logging, and the integration of software for data transmission and visualization.
Installing Raspberry Pi OS
The most recommended operating system for the Raspberry Pi weather station is Raspberry Pi OS (formerly Raspbian). It is a lightweight and optimized version of Linux designed specifically for Raspberry Pi.
Steps for Installing Raspberry Pi OS:
- Download the Raspberry Pi Imager: This tool simplifies the installation process. You can download it from the Raspberry Pi website.
- Prepare an SD Card: Use a 16GB or 32GB MicroSD card. Insert it into your computer using a card reader.
- Select Raspberry Pi OS: In the Imager, choose the version of Raspberry Pi OS you prefer:
- Raspberry Pi OS (32-bit): A full version with a desktop environment.
- Raspberry Pi OS Lite: A minimal version, ideal for headless setups without a monitor.
- Flash the SD Card: Click “Write” to install Raspberry Pi OS onto the SD card.
- Enable SSH for Headless Setup: If you plan to operate your Raspberry Pi without a monitor (headless mode), enable SSH by creating a blank file named
ssh(without any extension) in the root directory of the SD card’sbootpartition. - Wi-Fi Configuration (Headless Setup): Create a file named
wpa_supplicant.confin the samebootpartition, and include the following to configure Wi-Fi:country=USctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdevnetwork={
ssid="Your_SSID" psk="Your_WiFi_Password"
key_mgmt=WPA-PSK } - Insert the SD Card into the Raspberry Pi: Power it on, and your operating system should boot up, connecting to the configured Wi-Fi automatically if you enabled headless setup.
Accessing the Raspberry Pi via SSH
Once Raspberry Pi OS is installed and booted, you can remotely access the system using SSH. SSH allows you to control and manage the Pi from another computer on the same network.
- Find the IP Address: Use network tools like
nmapor check your router’s connected devices to find the IP address assigned to your Raspberry Pi. - Connect via SSH: Open a terminal (Linux/Mac) or Putty (Windows) and type:
ssh pi@<raspberry_pi_ip_address> The default username is pi, and the password is raspberry (you should change this after the first login for security).
Updating the Operating System
To ensure smooth performance and the latest security patches, it’s essential to update Raspberry Pi OS after installation. Run the following commands:
sudo apt update
sudo apt full-upgradeConfiguring Additional Software
Once the system is up and running, you may need to install additional software or libraries for your weather station, such as Python libraries to interface with sensors, data logging tools, or web frameworks for data visualization.
Key Libraries to Install:
- PiGPIO: For GPIO control and sensor interaction.
sudo apt install pigpio python3-pigpio- Adafruit_DHT: For reading data from the DHT22 or similar sensors.
sudo pip3 install Adafruit_DHT- Flask: If you plan to build a web server to display weather data.
sudo pip3 install FlaskLightweight Operating System: Raspbian Lite
For a more power-efficient setup, especially for headless weather stations, Raspbian Lite is a stripped-down version of Raspberry Pi OS without a graphical user interface (GUI). It runs faster and consumes fewer resources, making it ideal for remote stations where processing power and energy efficiency are key.
- Advantages: Minimal overhead, faster boot time, and lower power consumption.
- Best for: Headless systems that only require sensor control and data logging, without a need for local visualization.
Setting Up Automatic Updates and Backups
Keeping the system secure and functional is crucial for continuous data logging. You can schedule automatic updates and set up backups to ensure minimal downtime.
- Automatic Updates: Use
cronjobs to schedule regular system updates.
sudo crontab -e - Add the following line to update daily at midnight:
0 0 * * * sudo apt update && sudo apt full-upgrade -y- Backup Your SD Card: Regularly backup the entire SD card, or key data files, using tools like rsync or dd.
With Raspberry Pi OS properly installed and configured, your weather station will be ready to interface with sensors, process data, and transmit or visualize it remotely. Whether using a full desktop version or the lightweight Lite version, the system can be tailored to meet your specific project needs.
Programming Your Weather Station with Python
Once your Raspberry Pi is set up and running the appropriate operating system, the next step is to write the code that will control your weather sensors, gather data, and process it for visualization or storage. Python is the most widely used programming language for the Raspberry Pi due to its simplicity and the availability of libraries for working with GPIO pins, sensors, and communication protocols.
Installing Python Libraries for Sensor Integration
To interact with the various weather sensors connected to the Raspberry Pi, specific Python libraries are required. Below are the key libraries you’ll need:
RPi.GPIO: This is the standard library for controlling the GPIO pins on the Raspberry Pi.
sudo apt install python3-rpi.gpioAdafruit_DHT: This library is essential for working with DHT22 and similar temperature and humidity sensors.
sudo pip3 install Adafruit_DHTPiGPIO: An alternative GPIO library with advanced features for handling PWM (pulse-width modulation) and sensor communication.
sudo apt install pigpio python3-pigpioRequests: Used for making HTTP requests, useful if you want to send data to a web server or an API like OpenWeatherMap.
sudo pip3 install requestsReading Data from Sensors
Now that the necessary libraries are installed, you can start writing Python scripts to read data from your sensors.
Example: Reading Data from a DHT22 Sensor
The DHT22 is a commonly used sensor for measuring temperature and humidity. Here’s a simple Python script to read and display data from this sensor:
import Adafruit_DHT
# Set the sensor type and the GPIO pin
sensor = Adafruit_DHT.DHT22
pin = 4 # The GPIO pin where the sensor is connected
# Reading the data from the sensor
humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)
# Check if reading was successful
if humidity is not None and temperature is not None:
print(f'Temperature: {temperature:.1f}°C')
print(f'Humidity: {humidity:.1f}%')
else:
print('Failed to retrieve data from the sensor')
- Explanation: This script initializes the DHT22 sensor on GPIO pin 4, continuously attempts to read the temperature and humidity, and displays the values in the terminal. If the sensor fails to send data, it will retry until successful.
Example: Reading Data from a BMP180 (Barometric Pressure Sensor)
The BMP180 sensor measures barometric pressure and altitude. It communicates with the Raspberry Pi using the I2C protocol.
First, enable I2C on your Raspberry Pi:
sudo raspi-configNavigate to Interfacing Options and enable I2C.
Next, install the necessary Python library:
sudo pip3 install Adafruit-BMPHere’s a sample Python script to read pressure data from the BMP180:
import Adafruit_BMP.BMP085 as BMP085
# Create an instance of the BMP180 sensor
sensor = BMP085.BMP085()
# Read temperature and pressure data
temperature = sensor.read_temperature()
pressure = sensor.read_pressure()
# Display the readings
print(f'Temperature: {temperature:.2f}°C')
print(f'Pressure: {pressure / 100.0:.2f} hPa')
- Explanation: This script initializes the BMP180 sensor, retrieves the temperature and pressure values, and then prints them to the console.
Storing Data in a Local Database
Once you have the data from your sensors, you may want to store it locally for future analysis. SQLite is an easy-to-use lightweight database that runs well on the Raspberry Pi.
Setting Up SQLite
First, install SQLite and its Python bindings:
sudo apt install sqlite3
sudo pip3 install sqlite3Creating a Simple Weather Database
You can use a Python script to create a database and store temperature, humidity, and pressure data. Here’s an example:
import sqlite3
import time
import Adafruit_DHT
# Connect to (or create) the SQLite database
conn = sqlite3.connect('weather_data.db')
c = conn.cursor()
# Create a table to store the weather data
c.execute('''CREATE TABLE IF NOT EXISTS weather
(timestamp TEXT, temperature REAL, humidity REAL)''')
# Define the sensor
sensor = Adafruit_DHT.DHT22
pin = 4
# Read sensor data
humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)
# Insert data into the table
if humidity is not None and temperature is not None:
c.execute("INSERT INTO weather (timestamp, temperature, humidity) VALUES (?,?,?)",
(time.strftime('%Y-%m-%d %H:%M:%S'), temperature, humidity))
# Save (commit) the changes
conn.commit()
print(f"Data saved: {temperature:.2f}°C, {humidity:.2f}%")
# Close the connection
conn.close()
- Explanation: This script connects to an SQLite database named
weather_data.db, creates a table for storing weather data if it doesn’t already exist, reads data from the DHT22 sensor, and inserts the data into the table along with a timestamp.
Sending Weather Data to a Cloud Server
To access the weather data remotely or create a real-time dashboard, you may want to send the data to a cloud platform or a custom server.
Example: Sending Data to ThingSpeak (Cloud IoT Platform)
You can use ThingSpeak, a popular cloud platform for IoT projects, to log and visualize sensor data.
First, install the requests library:
sudo pip3 install requestsHere’s a script to send temperature and humidity data to ThingSpeak:
import requests
import Adafruit_DHT
# Set up the sensor
sensor = Adafruit_DHT.DHT22
pin = 4
# ThingSpeak API key
api_key = 'YOUR_API_KEY'
# Read sensor data
humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)
# Send data to ThingSpeak
if humidity is not None and temperature is not None:
payload = {'api_key': api_key, 'field1': temperature, 'field2': humidity}
response = requests.post("https://api.thingspeak.com/update", params=payload)
print(f"Data sent: {temperature:.2f}°C, {humidity:.2f}%")
else:
print("Failed to retrieve data from sensor")- Explanation: This script reads the temperature and humidity data, then sends it to ThingSpeak using a POST request. ThingSpeak can automatically generate graphs and charts to visualize this data in real time.
Automating Data Collection with Cron Jobs
You can automate the collection and logging of weather data by scheduling your Python script to run at regular intervals using cron jobs.
To edit the crontab, type:
crontab -eAdd the following line to run your weather data logging script every 5 minutes:
*/5 * * * * /usr/bin/python3 /home/pi/weather_station.pyThis ensures that your weather station continuously collects data without manual intervention.
Visualizing Weather Data in Real-Time
Once your Raspberry Pi weather station is collecting data, it’s essential to create a system to visualize the weather data in real-time. Visualizing data allows you to monitor trends, spot anomalies, and gain insights from the collected information. Several tools and platforms can help you create dynamic dashboards and charts for this purpose.
Using Grafana for Data Visualization
Grafana is a popular open-source platform for real-time data visualization. It is widely used in IoT projects due to its flexible dashboard system and support for various data sources, including time-series databases like InfluxDB and Prometheus.
Installing Grafana on Raspberry Pi
To install Grafana on Raspberry Pi, follow these steps:
- Add the Grafana repository:
sudo apt-get install -y adduser libfontconfig1
echo "deb https://packages.grafana.com/oss/deb stable main" | sudo tee /etc/apt/sources.list.d/grafana.list- Install the Grafana software:
sudo apt-get update sudo apt-get install grafana- Start Grafana:
sudo systemctl start grafana-server sudo systemctl enable grafana-server- Access the Grafana web interface: Open a browser and go to
http://<raspberry_pi_ip>:3000. The default login credentials are:- Username: admin
- Password: admin
Setting Up Data Source: InfluxDB
To visualize your weather station data, Grafana needs a data source. InfluxDB is commonly used as a time-series database that stores weather data over time. Follow these steps to integrate InfluxDB with Grafana:
- Install InfluxDB:
sudo apt-get install influxdb sudo systemctl start influxdb sudo systemctl enable influxdb- Create a database in InfluxDB:
influx CREATE DATABASE weather_station- Add InfluxDB as a data source in Grafana:
- In Grafana, go to Settings > Data Sources > Add data source.
- Choose InfluxDB and configure it with the database name
weather_station. - Set the URL to
http://localhost:8086and the Database toweather_station.
Creating a Grafana Dashboard
Once Grafana is set up with InfluxDB as the data source, you can create a dashboard to display weather data.
- Create a new dashboard:
- Go to the Dashboards section in Grafana and click on New Dashboard.
- Add a panel:
- Choose a panel type, such as Graph, Gauge, or Stat.
- For example, to display temperature, select Graph, and then configure the query to pull temperature data from InfluxDB using the following format:
SELECT mean("temperature") FROM "weather" WHERE $timeFilter GROUP BY time($__interval) fill(null)- Customize the dashboard:
- You can customize the dashboard layout, add titles, and adjust time ranges (e.g., last hour, last 24 hours) for the data display.
- Use Grafana’s built-in features to create alerts when weather parameters exceed certain thresholds, such as high temperatures or low air pressure.
Using Matplotlib and Plotly for Graphs
For users who prefer coding their visualization or need to create static graphs or simpler visualizations, Matplotlib and Plotly are excellent choices.
Matplotlib for Static Graphs
Matplotlib is a Python library used for creating static, interactive, and animated visualizations. It’s ideal for quickly graphing weather data and generating temperature and humidity plots.
- Install Matplotlib:
sudo pip3 install matplotlib- Example: Plotting Temperature Data:
import matplotlib.pyplot as plt
# Sample temperature data temperature_data = [22.4, 23.0, 23.5, 24.1, 24.5] time_stamps = ['10:00', '11:00', '12:00', '13:00', '14:00']
# Plot the temperature data plt.plot(time_stamps, temperature_data, marker='o', linestyle='-', color='b')
# Add labels and title
plt.xlabel('Time')
plt.ylabel('Temperature (°C)')
plt.title('Temperature Over Time')
# Display the plot
plt.show()Plotly for Interactive Graphs
Plotly is another Python-based library that allows you to create interactive graphs and dashboards, which can be embedded in web applications.
- Install Plotly:
sudo pip3 install plotly- Example: Interactive Plot of Temperature and Humidity:
import plotly.graph_objs as go
from plotly.subplots import make_subplots
# Sample data
time_stamps = ['10:00', '11:00', '12:00', '13:00', '14:00']
temperature_data = [22.4, 23.0, 23.5, 24.1, 24.5]
humidity_data = [65, 67, 64, 63, 62]
# Create subplots for temperature and humidity
fig = make_subplots(rows=2, cols=1, shared_xaxes=True, subplot_titles=('Temperature', 'Humidity'))
# Add temperature data fig.add_trace(go.Scatter(x=time_stamps, y=temperature_data, mode='lines+markers', name='Temperature'), row=1, col=1) # Add humidity data fig.add_trace(go.Scatter(x=time_stamps, y=humidity_data, mode='lines+markers', name='Humidity', marker=dict(color='orange')), row=2, col=1)
# Update layout fig.update_layout(title_text='Weather Station Data', height=600)
# Display the plot
fig.show()- Explanation: This code creates an interactive chart with temperature and humidity data, with both displayed on separate subplots. The output can be viewed in a browser, making it a great tool for online or remote weather monitoring.
Google Charts for Web-Based Visualization
For those looking to integrate weather data visualization into a website or web dashboard, Google Charts provides a simple, free option to embed real-time charts in a web interface.
- Set up Flask (a lightweight Python web framework) to serve the data:
sudo pip3 install flask- Example: Serve Weather Data to Google Charts: Create a simple Flask app to serve the data:
from flask import Flask, render_template app = Flask(__name__)
@app.route('/') def index(): temperature_data = [22.4, 23.0, 23.5, 24.1, 24.5] return render_template('index.html', temperature_data=temperature_data)
if __name__ == '__main__': app.run(debug=True)- In your
index.htmlfile, use Google Charts to render the temperature data:
<!DOCTYPE HTML>
<HTML>
<head>
<script type=”text/javascript” src=”https://www.gstatic.com/charts/loader.js”></script>
<script type=”text/javascript”>
google.charts.load(‘current’, {‘packages’:[‘corechart’]});
google.charts.setOnLoadCallback(drawChart);
function drawChart() {
var data = google.visualization.arrayToDataTable([
[‘Time’, ‘Temperature’],
[’10:00′, 22.4],
[’11:00′, 23.0],
[’12:00′, 23.5],
[’13:00′, 24.1],
[’14:00′, 24.5]
]);
var options = {
title: ‘Temperature Over Time’,
curveType: ‘function’,
legend: { position: ‘bottom’ }
};
var chart = new google.visualization.LineChart(document.getElementById(‘curve_chart’));
chart.draw(data, options);
}
</script>
</head>
<body>
<div id=”curve_chart” style=”width: 900px; height: 500px”></div>
</body>
</html>
By using these tools and techniques, your Raspberry Pi weather station can display real-time temperature, humidity, pressure, and other weather data, providing insights through graphs, dashboards, and interactive charts.
Visualizing Weather Data in Real-Time
Once your Raspberry Pi weather station is collecting data, it’s essential to create a system to visualize the weather data in real-time. Visualizing data allows you to monitor trends, spot anomalies, and gain insights from the collected information. Several tools and platforms can help you create dynamic dashboards and charts for this purpose.
Using Grafana for Data Visualization
Grafana is a popular open-source platform for real-time data visualization. It is widely used in IoT projects due to its flexible dashboard system and support for various data sources, including time-series databases like InfluxDB and Prometheus.
Installing Grafana on Raspberry Pi
To install Grafana on Raspberry Pi, follow these steps:
- Add the Grafana repository:
sudo apt-get install -y adduser libfontconfig1
echo "deb https://packages.grafana.com/oss/deb stable main" | sudo tee /etc/apt/sources.list.d/grafana.list- Install the Grafana software
sudo apt-get update
sudo apt-get install grafana- Start Grafana:
sudo systemctl start grafana-server
sudo systemctl enable grafana-server- Access the Grafana web interface: Open a browser and go to
http://<raspberry_pi_ip>:3000. The default login credentials are:- Username: admin
- Password: admin
Setting Up Data Source: InfluxDB
To visualize your weather station data, Grafana needs a data source. InfluxDB is commonly used as a time-series database that stores weather data over time. Follow these steps to integrate InfluxDB with Grafana:
- Install InfluxDB:
sudo apt-get install influxdb
sudo systemctl start influxdb
sudo systemctl enable influxdb- Create a database in InfluxDB:
influx
CREATE DATABASE weather_station- Add InfluxDB as a data source in Grafana:
- In Grafana, go to Settings > Data Sources > Add data source.
- Choose InfluxDB and configure it with the database name
weather_station. - Set the URL to
http://localhost:8086and the Database toweather_station.
Creating a Grafana Dashboard
Once Grafana is set up with InfluxDB as the data source, you can create a dashboard to display weather data.
- Create a new dashboard:
- Go to the Dashboards section in Grafana and click on New Dashboard.
- Add a panel:
- Choose a panel type, such as Graph, Gauge, or Stat.
- For example, to display temperature, select Graph, and then configure the query to pull temperature data from InfluxDB using the following format:
SELECT mean("temperature") FROM "weather" WHERE $timeFilter GROUP BY time($__interval) fill(null)- Customize the dashboard:
- You can customize the dashboard layout, add titles, and adjust time ranges (e.g., last hour, last 24 hours) for the data display.
- Use Grafana’s built-in features to create alerts when weather parameters exceed certain thresholds, such as high temperatures or low air pressure.
Using Matplotlib and Plotly for Graphs
For users who prefer coding their visualization or need to create static graphs or simpler visualizations, Matplotlib and Plotly are excellent choices.
Matplotlib for Static Graphs
Matplotlib is a Python library used for creating static, interactive, and animated visualizations. It’s ideal for quickly graphing weather data and generating temperature and humidity plots.
- Install Matplotlib:
sudo pip3 install matplotlib- Example: Plotting Temperature Data:
import matplotlib.pyplot as plt
# Sample temperature data
temperature_data = [22.4, 23.0, 23.5, 24.1, 24.5]
time_stamps = ['10:00', '11:00', '12:00', '13:00', '14:00']
# Plot the temperature data
plt.plot(time_stamps, temperature_data, marker='o', linestyle='-', color='b')
# Add labels and title
plt.xlabel('Time')
plt.ylabel('Temperature (°C)')
plt.title('Temperature Over Time')
# Display the plot
plt.show()Plotly for Interactive Graphs
Plotly is another Python-based library that allows you to create interactive graphs and dashboards, which can be embedded in web applications.
- Install Plotly:
sudo pip3 install plotly- Example: Interactive Plot of Temperature and Humidity:
import plotly.graph_objs as go
from plotly.subplots import make_subplots
# Sample data
time_stamps = ['10:00', '11:00', '12:00', '13:00', '14:00']
temperature_data = [22.4, 23.0, 23.5, 24.1, 24.5]
humidity_data = [65, 67, 64, 63, 62]
# Create subplots for temperature and humidity
fig = make_subplots(rows=2, cols=1, shared_xaxes=True, subplot_titles=('Temperature', 'Humidity'))
# Add temperature data fig.add_trace(go.Scatter(x=time_stamps, y=temperature_data, mode='lines+markers', name='Temperature'), row=1, col=1)
# Add humidity data fig.add_trace(go.Scatter(x=time_stamps, y=humidity_data, mode='lines+markers', name='Humidity', marker=dict(color='orange')), row=2, col=1)
# Update layout fig.update_layout(title_text='Weather Station Data', height=600)
# Display the plot
fig.show()- Explanation: This code creates an interactive chart with temperature and humidity data, with both displayed on separate subplots. The output can be viewed in a browser, making it a great tool for online or remote weather monitoring.
Google Charts for Web-Based Visualization
For those looking to integrate weather data visualization into a website or web dashboard, Google Charts provides a simple, free option to embed real-time charts in a web interface.
- Set up Flask (a lightweight Python web framework) to serve the data:
sudo pip3 install flask- Example: Serve Weather Data to Google Charts: Create a simple Flask app to serve the data:
from flask import Flask, render_template
app = Flask(__name__)
@app.route('/')
def index():
temperature_data = [22.4, 23.0, 23.5, 24.1, 24.5]
return render_template('index.html',temperature_data=temperature_data)
if __name__ == '__main__':
app.run(debug=True)- In your
index.htmlfile, use Google Charts to render the temperature data:
<!DOCTYPE html> <html> <head> <script type="text/javascript" src="https://www.gstatic.com/charts/loader.js"></script> <script type="text/javascript">
google.charts.load('current', {'packages':['corechart']});
google.charts.setOnLoadCallback(drawChart);
function drawChart() {
var data = google.visualization.arrayToDataTable([
['Time', 'Temperature'], ['10:00', 22.4], ['11:00', 23.0], ['12:00', 23.5], ['13:00', 24.1], ['14:00', 24.5]
]);
var options = { title: 'Temperature Over Time',
curveType: 'function',
legend: { position: 'bottom' } };
var chart = new google.visualization.LineChart(document.getElementById('curve_chart'));
chart.draw(data, options);
}
</script> </head> <body>
<div id="curve_chart" style="width: 900px; height: 500px"></div> </body> </html>
By using these tools and techniques, your Raspberry Pi weather station can display real-time temperature, humidity, pressure, and other weather data, providing insights through graphs, dashboards, and interactive charts.
Building a Web Interface for Weather Data Display
Buildin a web interface for your Raspberry Pi weather station allows you to monitor weather data remotely from any device. By using a combination of Python web frameworks and front-end libraries, you can build an interface that displays real-time temperature, humidity, and other weather metrics in a visually appealing way.
Setting Up Flask for Web Development
Flask is a lightweight Python web framework that is easy to set up and perfect for serving weather data collected from your Raspberry Pi sensors. Flask can be used to create a simple web server that displays your weather data on a webpage.
Installing Flask
First, install Flask on your Raspberry Pi:
sudo pip3 install FlaskCreating a Basic Flask Application
Start by creating a simple Flask application that retrieves data from your sensors and displays it on a webpage.
- Create a new Python file for your Flask app, e.g.,
weather_app.py
from flask import Flask, render_template
import Adafruit_DHT
import time
app = Flask(__name__)
# Sensor settings
sensor = Adafruit_DHT.DHT22
pin = 4
@app.route('/')
def index():
humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)
time_stamp = time.strftime('%Y-%m-%d %H:%M:%S')
return render_template('index.html', temperature=temperature, humidity=humidity, time_stamp=time_stamp)
if __name__ == '__main__':
app.run(debug=True, host='0.0.0.0')- Explanation: This script sets up a Flask app that reads temperature and humidity from a DHT22 sensor. It serves the data to a web template (
index.html), which will display it in a user-friendly format.
- Create the HTML template in a folder named
templates, and name the fileindex.html:
<!DOCTYPE HTML>
<html lang=”en”>
<head>
<meta charset=”UTF-8″>
<meta name=”viewport” content=”width=device-width, initial-scale=1.0″>
<title>Weather Station</title>
<style>
body { font-family: Arial, sans-serif; text-align: center; margin-top: 50px; }
.data { font-size: 2em; margin-top: 20px; }
</style>
</head>
<body>
<h1>Weather Station Data</h1>
<div class=”data”>
<p>Temperature: {{ temperature }}°C</p>
<p>Humidity: {{ humidity }}%</p>
<p>Last Updated: {{ time_stamp }}</p>
</div>
</body>
</html>
- Explanation: This is a simple HTML file that uses Jinja2 templating (built into Flask) to insert the values of
temperature,humidity, andtime_stampinto the page. The CSS styles are minimal, but you can expand them to improve the appearance.
- Run the Flask application:
python3 weather_app.py- Access the web interface by visiting the Raspberry Pi’s IP address on port 5000 (e.g.,
http://<raspberry_pi_ip>:5000).
Making the Web Interface Dynamic with JavaScript
To update the data on the webpage in real-time without requiring a refresh, you can use JavaScript and AJAX to periodically fetch new sensor readings from the server.
- Modify your HTML template to include a JavaScript function that will fetch the updated data every few seconds:
<!DOCTYPE html> <html lang="en"> <head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Weather Station</title>
<style>
body { font-family: Arial, sans-serif; text-align: center; margin-top: 50px;}
.data { font-size: 2em; margin-top: 20px; }
</style>
<script>
function updateData() {
fetch('/data')
.then(response => response.json())
.then(data => {
document.getElementById('temperature').innerText = `Temperature: ${data.temperature}°C`;
document.getElementById('humidity').innerText = `Humidity: ${data.humidity}%`;
document.getElementById('time_stamp').innerText = `Last Updated: ${data.time_stamp}`;
});
}
setInterval(updateData, 5000); // Fetch new data every 5 seconds
</script> </head> <body onload="updateData()">
<h1>Weather Station Data</h1>
<div class="data">
<p id="temperature">Loading...</p>
<p id="humidity">Loading...</p>
<p id="time_stamp">Loading...</p>
</div> </body> </html>
- Update your Flask app to serve data as JSON when requested via an AJAX call: Modify the
weather_app.pyto add a new route (/data) that returns the weather data in JSON format:
from flask import Flask, render_template, jsonify
import Adafruit_DHT
import time
app = Flask(__name__)
# Sensor settings
sensor = Adafruit_DHT.DHT22
pin = 4
@app.route('/')
def index():
return render_template('index.html')
@app.route('/data')
def data():
humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)
time_stamp = time.strftime('%Y-%m-%d %H:%M:%S')
return jsonify({'temperature': temperature, 'humidity': humidity, 'time_stamp': time_stamp})
if __name__ == '__main__':
app.run(debug=True, host='0.0.0.0')- Explanation: Now, when the
/dataroute is requested, the server will return the current weather data as a JSON object. The front-end JavaScript function fetches this data and updates the web page in real-time without reloading.
Styling and Mobile Responsiveness with Bootstrap
To make your web interface more visually appealing and responsive across devices, you can integrate Bootstrap, a popular CSS framework.
- Add the Bootstrap CDN link to your
index.html:
<link href="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/css/bootstrap.min.css" rel="stylesheet">
- Modify the HTML structure to use Bootstrap’s grid system and styling classes:
<div class=”container”>
<h1 class=”mt-5″>Weather Station Data</h1>
<div class=”row mt-4″>
<div class=”col-md-4 offset-md-4 text-center”>
<p id=”temperature” class=”display-4″>Loading…</p>
<p id=”humidity” class=”display-4″>Loading…</p>
<p id=”time_stamp” class=”text-muted”>Loading…</p>
</div>
</div>
</div>
- Explanation: This structure uses Bootstrap’s grid system to center the weather data on the page and applies Bootstrap classes to improve the layout and responsiveness.
Expanding Functionality with Additional Data
You can extend your web interface to display more complex weather data such as wind speed, barometric pressure, and rainfall. Simply add the relevant sensor data collection in your Flask app and display it on the webpage by following the same process used for temperature and humidity.
With the Flask framework, AJAX, and Bootstrap, you can create a highly responsive and visually appealing web interface to monitor your Raspberry Pi weather station data from any device, whether it’s a desktop, tablet, or mobile phone.
Conclusion
Building a Raspberry Pi weather station is an engaging and practical project that combines electronics, programming, and real-time weather data monitoring. By integrating various sensors, you can capture key environmental parameters like temperature, humidity, pressure, and wind speed, and visualize this data through tools like Grafana or custom web interfaces built with Flask. The flexibility of Raspberry Pi allows for numerous use cases, from home-based weather stations to remote, solar-powered setups. With options for local storage, cloud-based data transmission, and even machine learning integration, the possibilities for extending the system are nearly endless. Whether you’re a beginner or an advanced user, this project offers opportunities to learn, experiment, and make valuable weather insights available in real time.
FAQ
What is a Raspberry Pi weather station?
A Raspberry Pi weather station is a DIY project that uses a Raspberry Pi computer and various weather sensors to monitor environmental conditions such as temperature, humidity, wind speed, and more. The data can be stored locally, displayed in real time, or sent to the cloud for remote monitoring.
What sensors are needed for a Raspberry Pi weather station?
Common sensors used in a weather station include:
- DHT22 for temperature and humidity
- BMP180 for barometric pressure
- Rain gauge for rainfall measurement
- Anemometer for wind speed
- UV index sensor for solar radiation
Can I power a Raspberry Pi weather station with solar energy?
Yes, solar panels combined with a battery pack or UPS (Uninterruptible Power Supply) can be used to power a Raspberry Pi weather station, especially for off-grid or remote installations.
How do I store weather data from the Raspberry Pi?
You can store data locally using an SQLite database, USB drive, or SD card. Alternatively, you can send the data to the cloud using platforms like AWS IoT, Google Cloud, or ThingSpeak.
Can I visualize my weather station data?
Yes, tools like Grafana can be used to create real-time dashboards for visualizing weather data. Alternatively, you can use Python libraries like Matplotlib and Plotly for generating static or interactive graphs.
Can I access my weather station data remotely?
Yes, by setting up a web interface using Flask or sending data to the cloud, you can access your weather station data from any device with internet access. What is the best Raspberry Pi model for a weather station?
The Raspberry Pi 4 is ideal for setups that require more processing power, while the Raspberry Pi Zero W is better suited for low-power, compact, or remote weather stations.
How can I ensure my weather station runs continuously?
For continuous operation, consider using a solar panel with a battery pack, or a UPS for backup power. Minimizing power consumption by disabling unnecessary features like HDMI or Wi-Fi when not in use also helps.
Can I automate data collection from my Raspberry Pi weather station?
Yes, you can automate data collection and logging using cron jobs. For example, a Python script can be scheduled to run at regular intervals, collecting and saving weather data automatically.
Can I integrate machine learning with my weather station?
Yes, advanced users can integrate machine learning models to predict weather patterns or detect anomalies using libraries like TensorFlow Lite or Scikit-Learn.
