Introduction
Using GPIO pins for projects on a Raspberry Pi is an essential skill for those interested in electronics, robotics, and home automation. The General-Purpose Input/Output (GPIO) pins provide versatile connections that allow interaction with external components, from simple LEDs to complex sensors. These pins are available across multiple Raspberry Pi models such as the Raspberry Pi 4, Raspberry Pi Zero W, and Raspberry Pi Pico. With the right programming libraries, such as RPi.GPIO or GPIO Zero, you can easily control these pins using languages like Python or C/C++.
Whether you’re interested in building a motion detector, creating a home automation system, or exploring sensor integration with I2C and SPI protocols, mastering GPIO pins opens the door to countless possibilities. In this guide, we’ll explore how to set up projects using digital inputs and outputs, delve into popular project ideas, and troubleshoot common issues to help you bring your ideas to life with a Raspberry Pi.
Key Takeaways

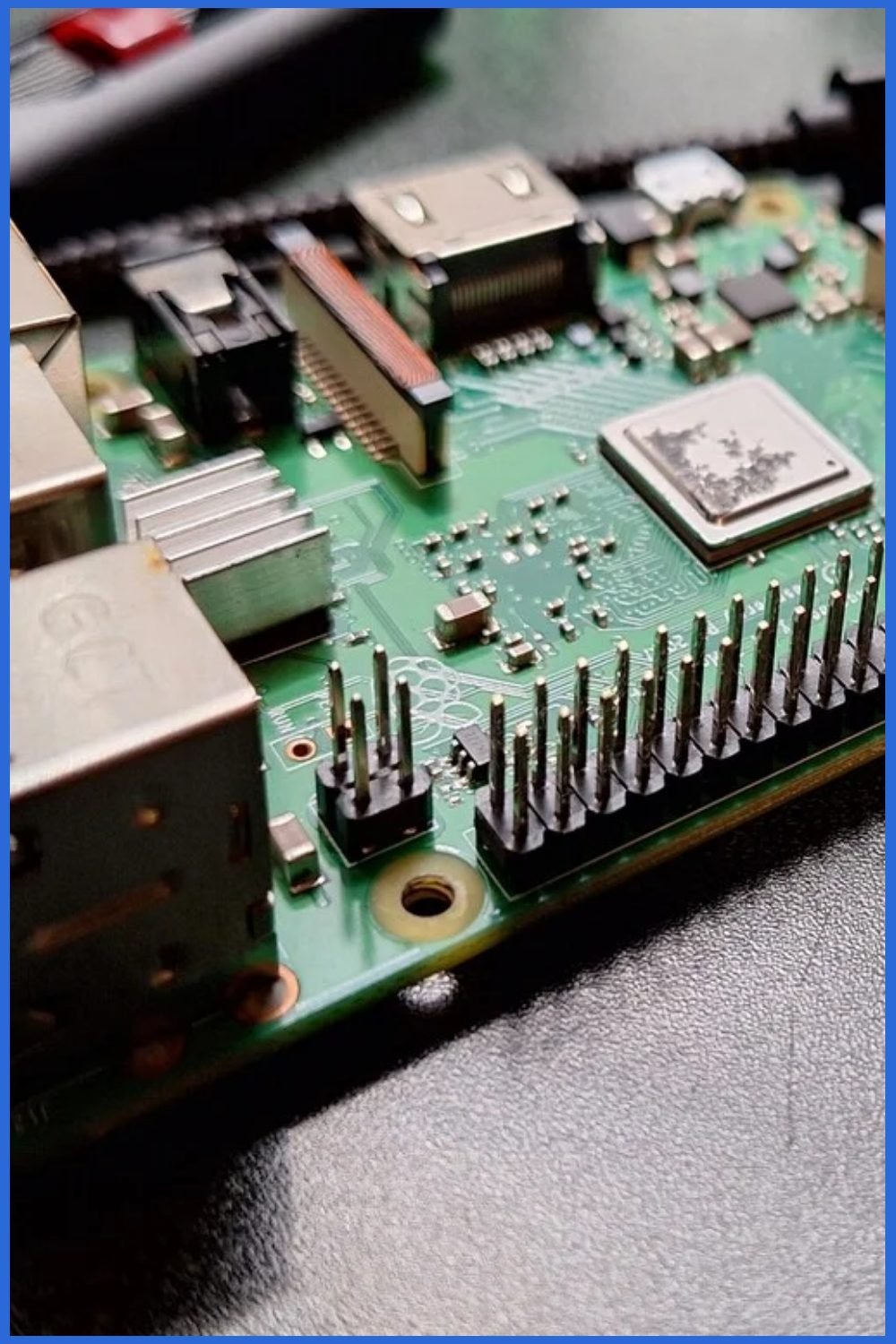

Understanding GPIO Pins on Raspberry Pi
GPIO Pin Numbering Systems
The GPIO pins on a Raspberry Pi can be referenced using two primary numbering systems: BCM (Broadcom) and BOARD. The BCM system uses the internal Broadcom chip designations, while the BOARD system uses the physical pin numbers on the Raspberry Pi’s header. This distinction is crucial when writing code, as using the wrong numbering system can lead to incorrect connections and errors in your project.
Pin Modes: Input, Output, and Alternate Functions
GPIO pins can operate in different modes: Input, Output, and Alternate Functions. Input mode is used for reading signals from devices like buttons and sensors. Output mode controls components such as LEDs or relays. Some pins support alternate functions like PWM (Pulse Width Modulation) or communication protocols like I2C and SPI.
Voltage Levels and Logic Compatibility
Raspberry Pi’s GPIO pins operate at 3.3V, which is lower than the typical 5V used by many sensors and components. Understanding this difference is essential to avoid damaging your Pi. Voltage converters or level shifters may be needed when interfacing with 5V components. Additionally, pull-up and pull-down resistors ensure stable readings by preventing floating pin states when no signal is present.
Edge Detection and Interrupts
For projects that require monitoring changes, such as counting button presses, edge detection is critical. The GPIO pins can detect rising edges (low to high transitions), falling edges (high to low transitions), or both. By using interrupts, you can execute specific code immediately when an event occurs, improving the efficiency and responsiveness of your project.
Common GPIO Pin Functions
Digital Input and Output
At the heart of GPIO pin functionality are digital input and digital output operations. A digital input reads the state of a pin, determining whether it’s high (3.3V) or low (0V), making it ideal for detecting the state of buttons, switches, and other binary sensors. On the other hand, digital output is used to control external components like LEDs, relays, and buzzers. For instance, setting a pin to “high” can turn on an LED, while setting it to “low” turns it off.
PWM (Pulse Width Modulation)
PWM (Pulse Width Modulation) is crucial for controlling devices like servo motors, dimming LEDs, and managing fan speeds. By adjusting the duty cycle of the PWM signal, you can effectively control the intensity or position of components. Raspberry Pi supports hardware PWM on certain pins, but software-based PWM can be used on any GPIO pin with libraries like RPi.GPIO and pigpio.
I2C Communication
I2C (Inter-Integrated Circuit) is a two-wire communication protocol used to interface with multiple devices using just two GPIO pins (SDA for data and SCL for the clock). Common I2C devices include sensors like the BMP180 for atmospheric pressure and the BME280 for humidity and temperature. The protocol’s addressing system allows connecting multiple devices on the same bus.
SPI Communication
For high-speed communication, SPI (Serial Peripheral Interface) is preferred. It uses four pins: MISO (Master In, Slave Out), MOSI (Master Out, Slave In), SCLK (Serial Clock), and CS (Chip Select). SPI is typically used for interfacing with displays, flash memory modules, and other devices requiring fast data transfer.
UART Communication
UART (Universal Asynchronous Receiver-Transmitter) is a serial communication protocol often used for communication between the Raspberry Pi and other devices, like a microcontroller or a GPS module. The GPIO pins handle the transmission (TX) and reception (RX) of data, enabling text-based communication through a terminal or for reading sensor data.
Popular Programming Languages for GPIO Control
Python
Python is the most commonly used language for controlling GPIO pins on Raspberry Pi due to its simplicity and extensive library support. The RPi.GPIO library is the standard for basic GPIO operations, while GPIO Zero provides a higher-level interface with simplified syntax, making it ideal for beginners. With Python, you can easily control LEDs, read sensor data, and integrate advanced logic into your projects.
C/C++
For more performance-intensive applications, C/C++ offers greater control over the hardware. The WiringPi library is a popular choice in the C/C++ ecosystem for interacting with GPIO pins. This approach is often used in real-time applications or when handling multiple pins simultaneously in robotics and automation projects.
Node-RED
Node-RED provides a visual programming environment that allows users to control GPIO pins through drag-and-drop interfaces. This platform is particularly useful for IoT (Internet of Things) projects, enabling you to easily connect sensors, process data, and create automated workflows without needing to write extensive code.
JavaScript
With the rise of JavaScript in IoT and embedded systems, libraries like onoff and pigpio allow you to control GPIO pins directly from JavaScript. This is useful for developers familiar with web technologies who want to leverage their skills in hardware projects.
Scratch
For younger learners and educators, Scratch provides a block-based interface to interact with GPIO pins. The Raspberry Pi Foundation offers a custom version of Scratch that allows students to create interactive projects, like controlling lights and motors, without needing to write traditional code.
CircuitPython and MicroPython
For those who prefer working with microcontrollers, CircuitPython and MicroPython are Python derivatives designed for hardware projects. These languages allow you to use Python syntax for direct interaction with sensors and actuators connected to GPIO pins, making them ideal for lightweight, portable applications.
Java
Java offers robust solutions for developers working with Raspberry Pi in enterprise applications. The Pi4J library is a key resource for Java-based GPIO control, integrating with hardware components and external systems seamlessly. Java’s flexibility and cross-platform capabilities make it suitable for complex projects that require scalability.
Shell Scripting
For simple tasks and automation, shell scripting can be used to control GPIO pins directly from the terminal. Tools like WiringPi offer command-line utilities, allowing you to toggle pins, read inputs, and execute tasks without writing full programs. This is beneficial for quick setups or when integrating GPIO control into existing scripts.
Go
The Go programming language is growing in popularity for embedded systems, thanks to its efficiency and concurrency. Libraries like periph provide GPIO support, making Go an excellent choice for scalable and concurrent applications such as networked sensor arrays.
Ruby
Ruby is another option for developers familiar with this language, offering GPIO libraries like PiPiper. Ruby’s readability and ease of use make it suitable for smaller projects or for those already using Ruby in web development who want to extend their projects into hardware.
Setting Up Your GPIO Project
Choosing a Raspberry Pi Model
Selecting the right Raspberry Pi model depends on your project’s requirements. For complex tasks involving multiple sensors or real-time processing, the Raspberry Pi 4 with its quad-core processor and ample RAM is ideal. If you need a compact and low-power solution, the Raspberry Pi Zero W is a cost-effective choice with built-in Wi-Fi. For microcontroller-based projects, the Raspberry Pi Pico is a powerful and affordable option. Assessing your project’s demands—whether it’s connectivity, processing power, or GPIO availability—will help determine the most suitable model.
Selecting the Right Components
Every GPIO project relies on the selecting the right components for smooth operation. Basic components include LEDs, resistors, and push buttons. For more advanced setups, consider integrating sensors like the DHT11 for temperature readings, or PIR sensors for motion detection. Breadboards simplify prototyping, while jumper wires ensure flexible connections. Depending on your project, you might also need relays, servos, or LCD displays.
Powering Your Project
Understanding voltage levels and power distribution is crucial to avoid damaging your Raspberry Pi or components. The GPIO pins provide 3.3V and 5V power outputs, but external devices often require higher currents. Voltage regulators and current-limiting resistors protect both your Pi and connected devices. If you’re using power-hungry components like motors or displays, consider external power supplies to handle the load. Integrating a battery management system or an uninterruptible power supply (UPS) can also help keep your project running without interruptions.
Safety Precautions
To prevent common issues, like short circuits and overheating, always double-check your connections before powering up your project. Using proper pull-up and pull-down resistors avoids floating pins, ensuring stable inputs. Additionally, it’s important to match the correct pin numbering system—either BCM or BOARD—based on your code, as incorrect mapping can lead to errors or even hardware damage.
Project Ideas and Examples
Simple Projects: LED Blinkers and Motion Detectors
Starting with basic projects helps you become familiar with GPIO pins and programming. A classic beginner project is the LED blinker, where you control an LED’s state through simple GPIO commands in Python. By connecting an LED to a GPIO pin with a current-limiting resistor, you can write a script to make it blink at intervals. This introduces you to digital output and basic GPIO control.
Another straightforward project is a motion detector using a PIR sensor. PIR sensors detect infrared radiation from moving objects, triggering a response in your code. You can connect the PIR sensor’s output to a GPIO pin and create a script that lights an LED or sounds a buzzer when motion is detected. These simple projects lay the foundation for more complex automation and security systems.
Intermediate Projects: Temperature Monitoring Stations
As you gain experience, you can move on to more integrated projects like a temperature monitoring station using a DHT11 or DHT22 sensor. These sensors measure both temperature and humidity and communicate with the Raspberry Pi via the I2C protocol. You can use libraries like Adafruit_DHT in Python to read sensor data and display it on an LCD screen or log it to a file. This project introduces more advanced concepts like data logging, sensor calibration, and using external libraries for hardware control.
Advanced Projects: Home Automation, Robotics, and Security Systems
For more complex projects, consider diving into home automation or robotics. Home automation systems involve controlling lights, appliances, and security features through GPIO pins. For example, you can build a system that uses relays to turn on lights remotely based on input from motion sensors or scheduled events.
In robotics, GPIO pins control various actuators and sensors. You can create a line-following robot using infrared sensors to detect line boundaries and control the motors through PWM. Incorporating additional components like an ultrasonic sensor for obstacle detection further enhances the robot’s capabilities.
Security systems are another popular project area. Using GPIO pins, you can connect cameras, door sensors, and alarms. With Python, you can write scripts to capture images when motion is detected or send alerts when specific conditions are met, such as a door being opened. Integrating cloud services or using Node-RED for automation adds advanced features like remote monitoring.
Working with Sensors
Popular Sensors for GPIO Projects
Incorporating sensors into your Raspberry Pi projects significantly extends their functionality. Some of the most widely used sensors include the DHT11 and DHT22 for measuring temperature and humidity. These sensors communicate through a single GPIO pin using a digital signal, making them easy to integrate. For motion detection, PIR sensors are ideal, especially for security applications or automated lighting systems.
Ultrasonic sensors like the HC-SR04 are commonly used for distance measurement in robotics. By emitting ultrasonic waves and measuring the time it takes for the echo to return, you can calculate distances accurately. Light-dependent resistors (LDRs) are another simple yet effective sensor for projects involving light measurement, such as automatic night lights.
Communication Protocols for Sensor Integration
Sensors often require specific communication protocols, which are essential when connecting multiple devices. I2C (Inter-Integrated Circuit) is a widely used protocol that allows you to connect multiple sensors using just two GPIO pins: SDA (data line) and SCL (clock line). Many environmental sensors, such as the BMP180 for barometric pressure and BME280 for temperature, humidity, and pressure, use I2C.
For high-speed communication with devices like displays or flash memory, SPI (Serial Peripheral Interface) is preferred. SPI requires four GPIO pins—MISO (Master In, Slave Out), MOSI (Master Out, Slave In), SCLK (Serial Clock), and CS (Chip Select). SPI’s speed and versatility make it suitable for applications that demand quick data transfer.
1-Wire is another protocol used by sensors like the DS18B20 temperature sensor, which allows multiple devices to be controlled over a single data line. This makes it perfect for setups where GPIO pin availability is limited.
Python Code Examples for Sensor Integration
Using the RPi.GPIO or GPIO Zero libraries, sensor data can be easily read and processed. For example, to read data from a DHT11 sensor using Python, you would install the Adafruit_DHT library and write a script like this:
import Adafruit_DHT
sensor = Adafruit_DHT.DHT11
pin = 4 # GPIO pin connected to the sensor
humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)
if humidity is not None and temperature is not None:
print(f'Temperature: {temperature:.1f}C Humidity: {humidity:.1f}%')
else:
print('Failed to retrieve data from sensor')
This code continuously reads the temperature and humidity from the sensor and displays it in a human-readable format.
For I2C sensors like the BMP180, you can use the smbus library to read data:
import smbus
import time
bus = smbus.SMBus(1)
address = 0x77 # I2C address of the BMP180 sensor
def read_temperature():
data = bus.read_i2c_block_data(address, 0xF4, 2)
temp = (data[0] << 8) + data[1]
temp = temp / 340.0 + 36.53
return temp
while True:
temperature = read_temperature()
print(f'Temperature: {temperature:.2f}C')
time.sleep(1)
These examples illustrate how to interface with common sensors, expanding the potential for your GPIO projects.
Troubleshooting GPIO Issues
Common Mistakes and Solutions
When working with GPIO pins on a Raspberry Pi, certain common issues can arise that hinder your project’s functionality. One of the most frequent mistakes is incorrect pin mapping. The Raspberry Pi supports two different numbering systems: BCM (Broadcom) and BOARD. Mixing these up in your code can lead to pins being incorrectly addressed, causing components to malfunction. Always double-check your code to ensure you’re using the correct system for your wiring configuration.
Another common issue involves using the wrong voltage levels. The Raspberry Pi operates at 3.3V, and applying 5V to the GPIO pins can damage them permanently. When interfacing with 5V components, it’s essential to use level shifters to protect your Pi.
Floating Pins and Debouncing
Unintentionally leaving GPIO pins floating (neither connected to ground nor a stable voltage) can lead to unreliable or erratic behavior. This is common when working with input pins connected to buttons or switches. To prevent this, use pull-up or pull-down resistors that provide a default state, ensuring the pin reads a consistent value when no signal is present.
Button presses often introduce noise, leading to false multiple readings. This phenomenon, known as “bouncing,” can be mitigated using a technique called debouncing. Debouncing can be handled both in software and hardware. In Python, this is achieved by adding a short delay after the initial detection of a button press:
import RPi.GPIO as GPIO
import time
button_pin = 18
GPIO.setmode(GPIO.BCM)
GPIO.setup(button_pin, GPIO.IN, pull_up_down=GPIO.PUD_UP)
def button_callback(channel):
print("Button Pressed")
GPIO.add_event_detect(button_pin, GPIO.FALLING, callback=button_callback, bouncetime=200)
try:
while True:
time.sleep(1)
except KeyboardInterrupt:
GPIO.cleanup()
This code uses the bouncetime parameter to ignore additional signals within 200 milliseconds after the first press, effectively debouncing the input.
Voltage Misalignment and Noise Interference
Voltage misalignment is a critical issue when interfacing multiple components. Devices operating at different voltage levels can cause erratic behavior or even permanently damage your Raspberry Pi. Using voltage dividers or logic level converters ensures safe communication between components operating at different voltages.
Noise interference is another potential problem, especially in projects involving long wire runs or operating in electrically noisy environments. Shielded cables and capacitors can help filter out unwanted noise. Additionally, ensure solid connections, as loose wires on breadboards are notorious for causing intermittent failures.
Overheating and Short Circuits
Overheating typically arises from drawing too much current through the GPIO pins. Remember that the GPIO pins can only supply limited current, usually up to 16mA per pin with a total of 50mA across all pins. If you’re powering multiple devices, consider external power supplies or transistors to handle the load.
Short circuits can occur when wires accidentally touch or when components are connected incorrectly. Always double-check your wiring before powering your circuit. Short circuits can damage not only the Raspberry Pi but also other connected devices. Using a multimeter to check for shorts before applying power can prevent costly mistakes.
Breadboard Faults and Damaged GPIO Pins
Breadboards are convenient for prototyping, but they are also prone to faults. Over time, the internal connections of a breadboard can become loose or corroded, leading to unreliable circuits. If you encounter intermittent issues, consider testing your setup on a new breadboard.
Finally, damaged GPIO pins are usually a result of excessive current or improper voltage application. If a pin no longer responds or behaves erratically, it might be permanently damaged. While some issues can be resolved by configuring a different pin for the same function, irreversible damage may require replacing the Raspberry Pi.
Advanced GPIO Techniques
Implementing Interrupt-Driven Programming
For projects that require immediate response to events, interrupt-driven programming is a powerful technique. Instead of constantly checking the state of a GPIO pin (known as polling), you can set up an interrupt to trigger a specific function whenever a pin’s state changes. This is particularly useful for projects involving buttons, sensors, or inputs that need real-time handling. In Python, the RPi.GPIO library provides a simple way to set up interrupts:
import RPi.GPIO as GPIO
GPIO.setmode(GPIO.BCM)
input_pin = 17
GPIO.setup(input_pin, GPIO.IN, pull_up_down=GPIO.PUD_UP)
def handle_event(channel):
print("Interrupt detected on pin", channel)
GPIO.add_event_detect(input_pin, GPIO.FALLING, callback=handle_event, bouncetime=300)
try:
while True:
pass
except KeyboardInterrupt:
GPIO.cleanup()
In this example, the handle_event function is triggered when the input pin detects a falling edge. Using interrupts reduces the CPU load and ensures timely responses in your applications.
Using PWM to Control Servos and LEDs
Pulse Width Modulation (PWM) is essential for controlling devices like servos and dimmable LEDs. By varying the duty cycle of the PWM signal, you can control the brightness of an LED or the position of a servo motor. The Raspberry Pi supports both hardware and software PWM. Libraries like RPi.GPIO and pigpio simplify PWM control:
import RPi.GPIO as GPIO
import time
servo_pin = 18
GPIO.setmode(GPIO.BCM)
GPIO.setup(servo_pin, GPIO.OUT)
pwm = GPIO.PWM(servo_pin, 50) # 50Hz frequency
pwm.start(7.5) # Neutral position for a typical servo
try:
while True:
pwm.ChangeDutyCycle(2.5) # Move to 0 degrees
time.sleep(1)
pwm.ChangeDutyCycle(7.5) # Move to 90 degrees
time.sleep(1)
pwm.ChangeDutyCycle(12.5) # Move to 180 degrees
time.sleep(1)
except KeyboardInterrupt:
pwm.stop()
GPIO.cleanup()
This code demonstrates how to control a servo using PWM. Adjusting the duty cycle moves the servo to different angles. For more precise applications, the pigpio library offers enhanced features, including high-resolution PWM.
Setting Up Bit-Banging for Custom Protocols
When native support for a communication protocol isn’t available, bit-banging is an advanced technique used to manually drive the protocol through GPIO pins. Bit-banging involves controlling the timing of data signals programmatically, allowing you to implement protocols like 1-Wire or other non-standard interfaces. This technique requires precise timing and is often used when working with custom hardware or unique devices that do not support common protocols like I2C or SPI.
Exploring GPIO Multiplexing
If your project requires more GPIO pins than are available, multiplexing is an effective method to expand GPIO capabilities. By using external ICs like the 74HC595 shift register or MCP23017 GPIO expander, you can control additional outputs or inputs. For example, a shift register allows you to control eight additional outputs using just three GPIO pins. This technique is commonly used in projects involving LED matrices, large relay banks, or multiple input sensors.
Here’s an example of using a shift register for expanding GPIO outputs:
import RPi.GPIO as GPIO
data_pin = 18
latch_pin = 23
clock_pin = 24
GPIO.setmode(GPIO.BCM)
GPIO.setup(data_pin, GPIO.OUT)
GPIO.setup(latch_pin, GPIO.OUT)
GPIO.setup(clock_pin, GPIO.OUT)
def shift_out(data):
GPIO.output(latch_pin, 0)
for bit in range(8):
GPIO.output(clock_pin, 0)
GPIO.output(data_pin, data & (1 << (7 - bit)))
GPIO.output(clock_pin, 1)
GPIO.output(latch_pin, 1)
try:
while True:
for i in range(256):
shift_out(i)
time.sleep(0.1)
except KeyboardInterrupt:
GPIO.cleanup()
This script cycles through 256 different output states, demonstrating how to control multiple outputs with a single shift register.
Expanding GPIO with Multiplexers and Demultiplexers
Multiplexers and demultiplexers allow you to select from multiple inputs or outputs using a smaller number of control pins. For instance, the CD74HC4067 multiplexer can connect up to 16 inputs to a single GPIO pin, greatly expanding your Raspberry Pi’s capabilities. This technique is invaluable in sensor arrays or applications requiring multiple analog inputs.
Power Management for GPIO Projects
Understanding Power Requirements and Voltage Levels
In GPIO projects, managing power correctly is crucial to ensuring stability and preventing damage. The Raspberry Pi provides 3.3V and 5V power outputs, but components may require specific voltages to operate safely. Using the incorrect voltage can result in malfunction or irreversible damage to both the Raspberry Pi and connected devices. For example, while the Pi’s GPIO pins operate at 3.3V logic, many sensors and components work at 5V, necessitating the use of logic level shifters.
Voltage Regulation and Current Limiting
If your project involves multiple devices drawing significant power, such as motors or relays, external voltage regulators are often needed. These regulators ensure that the Raspberry Pi’s GPIO pins are not overstrained. Current-limiting resistors are equally important, especially when driving LEDs or other components directly from the GPIO pins. Without proper current limiting, excessive draw could damage both the GPIO pin and the connected device.
Powering High-Current Devices
For devices that require more current than the GPIO pins can supply, like servos, DC motors, or large displays, you’ll need an external power source. A common approach is to use transistors or MOSFETs as switches, allowing the Raspberry Pi to control high-power devices indirectly. For instance, you could use a 12V power supply to run motors while using GPIO pins to control the switching circuit.
Another option is using relays. A relay module allows the Raspberry Pi to control high-voltage devices, such as home appliances or lighting systems, while keeping the Pi isolated from the high-voltage circuitry.
Battery Management for Portable Projects
For mobile or remote projects, powering your Raspberry Pi with batteries is often necessary. Depending on the project, options include LiPo batteries, 18650 cells, or even AA battery packs. However, managing battery power requires careful planning. Adding a battery management system (BMS) helps monitor battery levels, protect against overcharging, and regulate output voltages.
Additionally, step-up or step-down voltage converters might be needed to match the power requirements of your Raspberry Pi and connected devices. For example, if using a 7.4V LiPo battery, a step-down converter can adjust the voltage to the 5V needed by the Raspberry Pi.
Integrating Uninterruptible Power Supplies (UPS)
For projects that require uninterrupted operation, even during power outages, integrating an Uninterruptible Power Supply (UPS) is key. Several UPS HATs are available for the Raspberry Pi, offering battery backup capabilities. These HATs provide seamless power switching from the main supply to the battery when a failure is detected, preventing unexpected shutdowns and potential data corruption.
Optimizing Power Efficiency
In power-sensitive projects, especially those running on battery power, optimizing efficiency is critical. Techniques like putting the Raspberry Pi in low-power mode, disabling unnecessary peripherals (like HDMI), or even using a sleep mode for your scripts can significantly extend battery life. Additionally, careful management of GPIO pins, such as turning off unused outputs, can reduce overall power consumption.
External Power Sources and Isolation
When powering large projects with multiple components, external power supplies may be required. It’s important to isolate these power sources from your Raspberry Pi using optocouplers or isolation circuits. Isolation prevents potential backflow of current that could damage the Raspberry Pi. This approach is especially useful in high-voltage or industrial environments where the risk of electrical noise or surges is higher.
Monitoring Power Consumption
For advanced projects, monitoring power usage in real-time can help you identify inefficiencies and optimize performance. Using an INA219 current sensor or similar device allows you to track voltage, current, and power consumption. This data can be displayed on an LCD screen, logged to a file, or even trigger alarms when power thresholds are exceeded.
Conclusion and Final Thoughts
Using GPIO pins with a Raspberry Pi opens up endless possibilities for creative and practical projects. From simple tasks like blinking LEDs to complex automation systems, mastering GPIO control is key to unlocking the full potential of your Raspberry Pi. By understanding the basics of pin numbering systems, voltage levels, and pin modes, you can confidently dive into a wide range of projects. As you progress, incorporating more advanced techniques like interrupt-driven programming, PWM control, and multiplexing will allow you to tackle more ambitious projects, including robotics, sensor networks, and smart home solutions.
Choosing the right components and programming languages is just as important as understanding GPIO functions. Whether you’re using Python, C/C++, or JavaScript, the libraries available for GPIO control make it easy to start building right away. Additionally, managing power effectively—through proper voltage regulation, current limiting, and battery management—is crucial for the stability and longevity of your projects.
Troubleshooting common issues like floating pins, debouncing, and noise interference ensures that your projects run smoothly, while taking precautions to avoid short circuits and overheating protects both your components and your Raspberry Pi. By following best practices, you can prevent damage and enjoy a reliable setup.
Finally, exploring advanced topics like bit-banging, power optimization, and protocol integration offers new avenues to expand your projects. As you continue to experiment and learn, you’ll discover how versatile and powerful the Raspberry Pi’s GPIO pins truly are, enabling you to create anything from interactive displays to fully automated systems.
Frequently Asked Questions
What are GPIO pins used for on a Raspberry Pi?
GPIO pins allow you to control and interface with external components like LEDs, sensors, motors, and relays. They can be used as digital inputs or outputs and support communication protocols like I2C, SPI, and UART.
How do I prevent damaging GPIO pins?
Always check voltage levels and use current-limiting resistors. Avoid connecting 5V devices directly to GPIO pins and consider using logic level shifters. Double-check your pin mappings and avoid short circuits.
Can I control multiple devices with limited GPIO pins?
Yes, you can expand GPIO capability using multiplexers, shift registers, or GPIO expanders like the MCP23017. These techniques allow you to control more devices using fewer GPIO pins.
Which Raspberry Pi model is best for GPIO projects?
For most projects, the Raspberry Pi 4 is ideal due to its performance and GPIO flexibility. For simpler or compact setups, the Raspberry Pi Zero W is a cost-effective option. For microcontroller applications, consider the Raspberry Pi Pico.
How do I power my Raspberry Pi and GPIO devices for portable projects?
Portable projects often use battery power, such as LiPo or 18650 cells. Ensure you use voltage regulators and battery management systems to match the required voltage. Consider a UPS HAT for uninterrupted power.
