The Raspberry Pi Time-Lapse Camera offers an accessible approach to creating high-quality time-lapse videos. Choosing the right Raspberry Pi model is essential for ensuring your time-lapse camera performs reliably over extended periods. The Raspberry Pi 4 is a strong choice for projects needing high-resolution images and quick processing capabilities, thanks to its faster CPU and available RAM options. For users aiming for a compact, portable setup, the Raspberry Pi Zero W offers Wi-Fi connectivity in a smaller, energy-efficient package, making it ideal for battery-operated or solar-powered setups in remote areas. Another option, the Compute Module 4, is suited for custom or professional setups where flexibility in hardware design is necessary.
Key Takeaways
Required Components
Raspberry Pi time-lapse camera components are essential for building a functional system. The Raspberry Pi 4 Model B serves as the brain, processing images and controlling operations. It’s paired with the Camera Module V2, which captures high-quality pictures. These two parts connect via a special ribbon cable.
You’ll need a power supply to keep your Pi running. A microSD card acts as the Pi’s storage and boots the system. It’ll hold the Raspbian operating system and Python libraries for camera control.
When setting up, you’ll use a USB keyboard and mouse. To keep your camera steady during long shoots, a sturdy tripod or mount is crucial.
Some extras can make your setup even better. A display lets you see what you’re shooting on-site. For outdoor use, a battery pack keeps things running without a power outlet nearby.
To get everything working right, you’ve got to set up the Camera Module V2 software correctly. This step’s key for capturing great time-lapse footage.
Here’s a quick list of what you need:
- Raspberry Pi 4 Model B
- Camera Module V2
- Power supply
- MicroSD card
- Raspbian OS and Python libraries
- USB keyboard and mouse
- Tripod or mount
- Optional: Display and battery pack
Setting Up the Raspberry Pi
Setting up the Raspberry Pi for time-lapse photography is a straightforward process that begins with installing the Raspberry Pi OS on a microSD card. Once you’ve done this, update and upgrade the system packages. Then, install Python and the necessary libraries for camera functionality.
To configure the Raspberry Pi Camera module:
- Plug the camera’s ribbon cable into the Raspberry Pi
- Turn on the camera in the Raspberry Pi settings
- Check if it’s working by using the ‘rpicam-still’ command

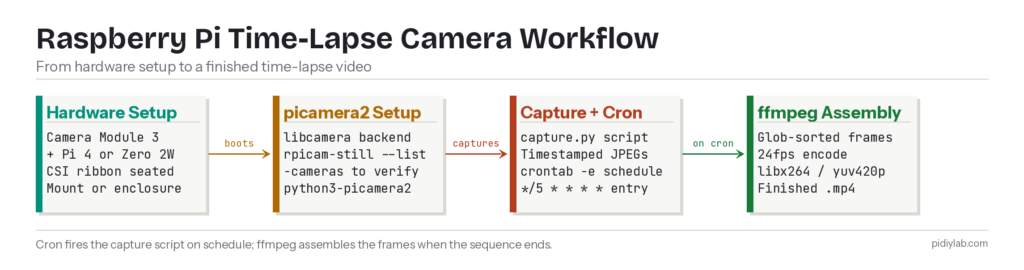

After setting up the hardware and software, you’ll create a Python script to snap photos at set times. This script will be the heart of your time-lapse project. To make it run automatically, use crontab to schedule when it should start.
When setting up your Raspberry Pi time-lapse camera, think about:
- How much storage you’ll need
- Where you’ll get power from
- How to protect it from the weather
If you set everything up carefully, you’ll be able to capture amazing time-lapse videos of things like:
- Flowers blooming
- Clouds moving
- Cities growing
Your Raspberry Pi time-lapse camera can show how things change over time in ways we can’t usually see.
Assembling the Camera System
Time-lapse camera system assembly is a straightforward process that begins with the Raspberry Pi 4 and PiCamera V3 wide module. These parts are the heart of this project, letting you take great pictures and process them easily.
The system fits inside a special 3D-printed case. This case protects the parts and makes the camera work better. It has a moving arm for the PiCamera, so you can point it where you want. There’s also a place to keep the camera’s ribbon cable safe and tidy.
A small screen is built into the case. It shows you what’s happening and lets you control the camera while it’s working. This makes it easier to use and check on the system.
You can easily get to the microSD card in the case. This helps when you need to move pictures or add more storage space. It’s important for managing all the data from your time-lapse projects.
To put it all together, you’ll use nuts, washers, and screws to hold the parts in place. After that, you’ll set up the system with Python scripts and cron jobs. These make the camera take pictures automatically over time.
When it’s done, you’ll have a tough, flexible tool for capturing slow changes. You could use it to count visitors or watch plants grow. Here are some examples of what you might capture:
- A flower blooming over several days
- The changing colors of leaves in fall
- The ebb and flow of traffic at a busy intersection
The system’s versatility means it can be used for many different projects, from science experiments to art installations.
Installing Necessary Software
Installing Necessary Software is crucial for setting up the Raspberry Pi Time-Lapse Camera. Raspbian operating system installation on a microSD card serves as the foundation for your Raspberry Pi’s storage and boot drive. After installing the OS, you’ll need to update and upgrade system packages. Use these commands in the terminal:
sudo apt-get updatesudo apt-get upgradeThese commands ensure you’ve got the latest software versions.
Python and its libraries, especially ‘picamera’, are essential for controlling the Raspberry Pi camera module. This library lets you capture images with time stamps and create time-lapse videos using the Pi’s camera.
To set up the Raspberry Pi Camera module:
- Attach the ribbon cable to your Raspberry Pi
- Turn on the camera in the Raspberry Pi settings
- Check if it’s working with the ‘raspistill’ command
Once you’ve completed these steps, your Pi will be ready to snap photos at set times and turn them into a time-lapse video. You can use this setup for various projects, like watching plants grow or tracking how many people visit a place.
For example, you might set up your Pi to take a picture every hour for a week to show how a sunflower follows the sun. Or, you could place it in a busy street to see how foot traffic changes throughout the day.
Configuring Time-Lapse Settings
Time-lapse settings for a Raspberry Pi camera are customized in the settings.txt file. This file lets you tweak key aspects of your project, like when to start and stop shooting, how often to take pictures, image quality, and HDR options. Changing these settings helps you tailor the camera’s behavior to your specific needs.
To make your time-lapse setup work on its own, set up the Raspberry Pi to start taking pictures when it boots up. You can do this by adding a script to run at startup with the sudo crontab command. This script should kick off the time-lapse process and keep the camera running for as long as you want.
In the timelapse folder, you might need to add or remove some files to get everything just right. Make sure the date and time settings match up with real-world events you want to capture. For better power management, especially if you’re using batteries or working in remote areas, program the Raspberry Pi to turn off once it’s done recording.
Here’s an example of how to set up a basic time-lapse:
- Open the settings.txt file
- Set start_time to “08:00” and stop_time to “18:00”
- Change interval to “300” for a picture every 5 minutes
- Set resolution to “1920×1080” for Full HD images
- Save the file and reboot your Raspberry Pi
Capturing and Processing Images
Capturing and processing images is the core of time-lapse photography with a Raspberry Pi. The Pi’s camera module, guided by Python scripts, snaps photos at set times. These scripts do all the work, from taking pictures to making videos.
To make better time-lapses:
- Change camera settings for light, color, and focus
- Use storage wisely, on the Pi or elsewhere
- Fix up pictures to look more alike
The Python scripts let you choose how long to film, how often to take photos, and how fast the video plays. You can save pictures on the Pi, a USB stick, or in the cloud. This means you can film lots of different things, like short events or slow changes in nature.
Fixing up the pictures after taking them is key to making good time-lapse videos. You can make the video steadier, fix the colors, and adjust how bright it is. The Pi can do some of this work, or you can get the pictures ready to edit on a bigger computer.
Here’s an example: Let’s say you want to film a flower opening. You’d set the Pi to take a picture every 5 minutes for 12 hours. Then, you’d use the scripts to make these 144 pictures into a 30-second video. You might need to make all the pictures the same brightness so the video looks smooth.
Troubleshooting Common Issues
Troubleshooting common issues is essential for maintaining a Raspberry Pi Time-Lapse Camera setup. Five frequent problems can impede your system’s performance.
Camera connection troubles often top the list. Ensure the module’s securely fastened to the Pi’s camera port. Next, activate the camera in the Pi’s config settings. Power snags, particularly with battery-operated setups, can derail your project. Check your supply or pack’s output.
Script hiccups are another common hurdle. Scan your time-lapse code for typos or wrong file paths. Use the file explorer to verify image and video locations. Lastly, keep an eye on your microSD card’s storage. A full card can halt captures mid-process.
| Snag | Fix |
|---|---|
| Undetected camera | Double-check wiring and enable in settings |
| Power woes | Inspect supply or battery pack |
| Code errors | Proofread script and confirm paths |
Terminal commands can help diagnose these issues. Update your Pi’s software with ‘sudo apt install’ to ensure current dependencies. If your time-lapse doesn’t kick off automatically, review the crontab file for scheduled tasks. Tweak the capture interval in your script to save space, allowing for longer videos without maxing out your microSD card.
For example, changing from a 1-second to a 5-second interval can quintuple your recording time. This adjustment is especially useful for capturing slow-moving subjects like plant growth or construction projects.
References
- Picamera Documentation – Guide for controlling Raspberry Pi cameras with the Picamera Python library.
- MotionEyeOS on GitHub – Open-source platform for managing Raspberry Pi cameras remotely.
Frequently Asked Questions
Can the Raspberry Pi Time-Lapse Camera Be Used for Underwater Photography?
Underwater photography with a standard Raspberry Pi Time-Lapse Camera is not recommended. However, with proper waterproof housing and modifications, it could potentially be adapted for underwater use. Specialized underwater cameras are typically more suitable for such applications.
What Is the Maximum Duration for a Single Time-Lapse Sequence?
The maximum duration for a single time-lapse sequence is primarily limited by storage capacity and power supply. With sufficient storage and a stable power source, sequences can potentially last for months or even years, depending on capture interval settings.
How Does Extreme Weather Affect the Camera’s Performance and Longevity?
Extreme weather can greatly impact camera performance and lifespan. High temperatures may cause overheating, while moisture can lead to corrosion. Cold can affect battery life and image quality. Proper weatherproofing and climate control are essential for outdoor deployments.
Can the System Be Remotely Controlled or Monitored via Smartphone?
Remote control and monitoring of the system via smartphone is possible. By implementing network connectivity and appropriate software, users can access camera settings, view live feeds, adjust intervals, and retrieve captured images or videos from their mobile devices.
Is It Possible to Integrate Motion Sensors for Event-Triggered Time-Lapse Capture?
Yes, motion sensors can be integrated for event-triggered time-lapse capture. This enhancement allows the system to initiate recording when movement is detected, optimizing storage and capturing relevant events. Implementation requires additional hardware and programming modifications to the existing setup.
Summing Up
The Raspberry Pi Time-Lapse Camera offers a flexible and affordable solution for capturing high-quality time-lapse videos. By combining readily available components with open-source software, this system provides a customizable platform for various applications. The compact design, coupled with automated image capture capabilities, makes it suitable for long-term projects in diverse environments. With proper setup and configuration, users can achieve professional-grade results while minimizing costs and complexity compared to traditional time-lapse equipment.
