Raspberry Pi 5 GPU Boost for Apps

Introduction

What GPU Acceleration Means on a Pi

GPU acceleration on Raspberry Pi 5 means pushing more tasks onto the graphics chip instead of letting the CPU sweat through everything. It’s not just for gamers. If you’ve ever tried opening Chromium on an older Pi and felt like you aged a year before the tab loaded, well, GPU help changes that.

Now, the Pi 5 comes with the VideoCore VII GPU. Sounds fancy, right? What matters is that it actually supports Vulkan and OpenGL ES 3.1. That means smoother playback, faster rendering, and your system won’t choke on basic multitasking.

You’re not turning your Pi into a gaming rig. But running desktop apps like VLC, GIMP, or VS Code doesn’t have to feel like punishment anymore. All right, let’s see what makes this thing tick.

Key Takeaways

Raspberry Pi 5 supports modern graphics APIs like OpenGL ES 3.1 and Vulkan 1.2
Hardware acceleration improves performance for browsers, video, and 3D applications
Wayland offers better performance than X11 on Raspberry Pi OS Bookworm
You need updated Mesa drivers, the right kernel overlay, and proper cooling
Not all applications benefit, but many desktop use cases see huge improvements

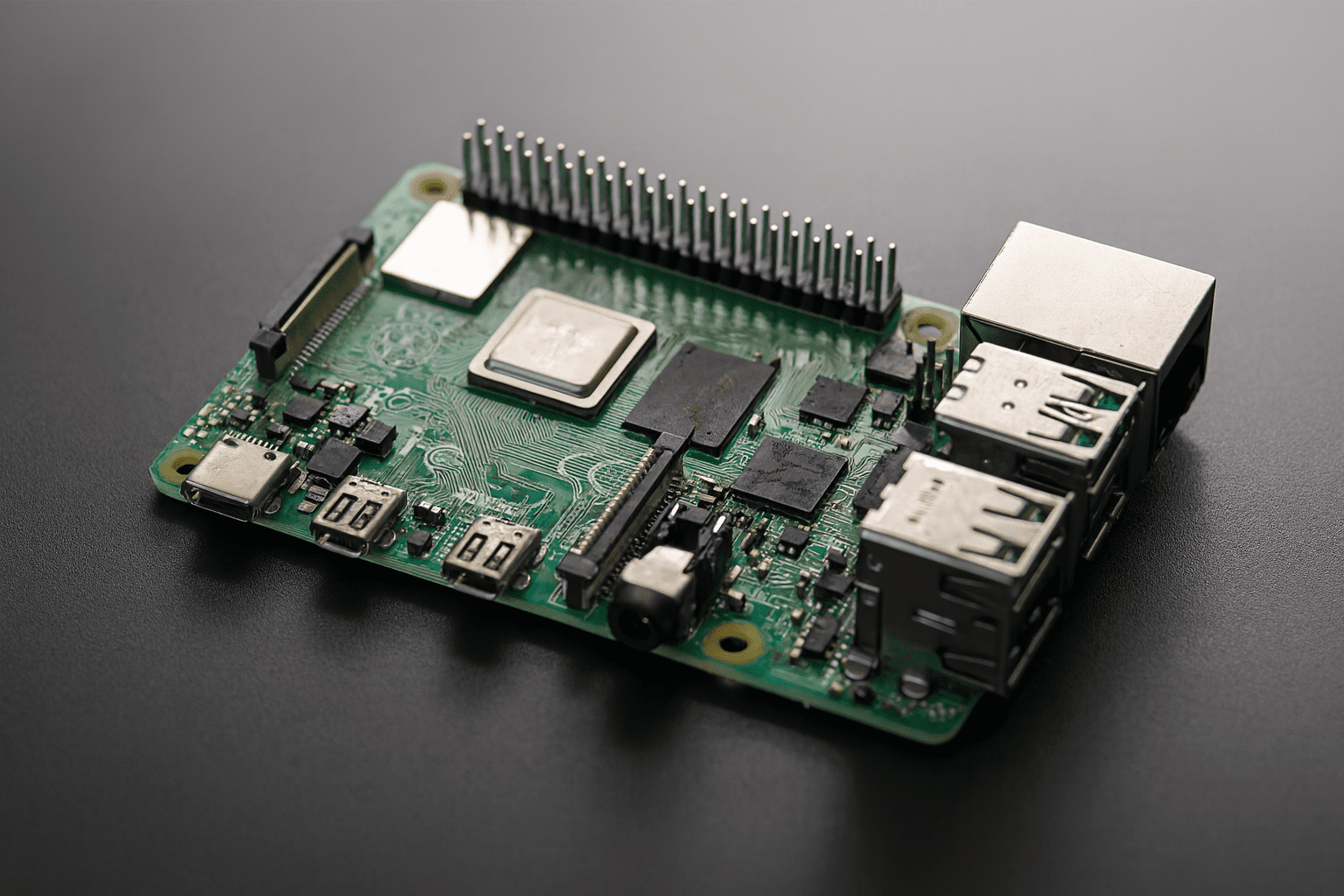

Raspberry Pi 5 Hardware Overview

CPU and GPU Architecture

The Raspberry Pi 5 uses the Broadcom BCM2712 chip. This includes a quad-core Cortex-A76 CPU, which already feels like a real computer compared to earlier versions. But the spotlight here is on the VideoCore VII GPU, which is the first major graphics jump since the Pi 4. It supports OpenGL ES 3.1 and Vulkan 1.2, both of which allow better 3D rendering, smoother window animations, and usable desktop effects.

This GPU can handle more complex shaders, video playback without stuttering, and compositing tasks that used to slow the system down. You can expect better framerates even in day-to-day use like moving windows or switching workspaces.

System Memory and I/O

Another big jump is the LPDDR4X RAM, which offers higher bandwidth. More memory bandwidth means the GPU and CPU aren’t fighting over slow lanes to get data. The Pi 5 comes in 4GB and 8GB models, which is plenty for desktop environments like GNOME or KDE when GPU acceleration is enabled.

Also, the introduction of PCIe 2.0 lanes (through an external connector) means you can attach faster storage like NVMe SSDs. This doesn’t directly boost GPU power, but it helps with I/O performance and frees the CPU to handle other tasks—especially useful when running GPU-heavy apps like Blender or VLC.

What is GPU Acceleration?

How GPU Acceleration Works

GPU acceleration means letting the GPU (graphics processing unit) take over tasks that the CPU would normally handle. It’s like hiring a specialist instead of asking your general contractor to do everything. Instead of the CPU rendering videos, decoding web content, or drawing your desktop UI, the GPU steps in and handles those visual chores much faster.

The Raspberry Pi 5’s VideoCore VII is built to manage 3D rendering, video decoding, and graphical compositing. That means smoother animations, faster video playback, and less lag when opening apps.

When It’s Useful

Not every app benefits, but the ones that do are the ones you notice lagging without it. Here’s where GPU acceleration really helps:

Web Browsing: Hardware-accelerated Chromium loads sites quicker, scrolls smoother, and handles YouTube better.
Video Playback: VLC can decode high-res files without stuttering.
Photo Editing: GIMP benefits from smoother UI and GPU-backed effects.
3D Rendering: Blender offloads modeling and previewing to the GPU.

If you’re using the Pi as a light desktop machine, these improvements are the difference between “barely usable” and “pretty decent.”

Supported Graphics APIs

OpenGL ES and Vulkan

The Raspberry Pi 5 brings real desktop-class API support with OpenGL ES 3.1 and Vulkan 1.2. If you’ve used a Pi before, you probably remember the clunky old OpenGL ES 2.0 limitations. With ES 3.1, you get compute shaders, improved buffer management, and better compatibility with modern applications.

Vulkan is the newer API in town. It’s low-level, fast, and more complex—but for applications that support it, the performance gains can be noticeable. It’s especially handy for 3D engines and multimedia tools that know how to tap into it.

Current Mesa Driver Support

Raspberry Pi OS uses the Mesa 3D driver stack, which includes drivers for both OpenGL ES and Vulkan. The Mesa stack communicates directly with the VideoCore VII GPU via Gallium3D. Most systems running the latest Raspberry Pi OS (Bookworm or later) will already have the necessary Mesa drivers installed.

For Vulkan, you’ll want to check that vulkan-tools and vulkan-utils are installed. You can verify it with a simple terminal command:

vulkaninfo | less

That’ll give you everything the system sees about your Vulkan setup, including supported features and limitations.

Setting Up GPU Acceleration

Checking Your OS Version

First, make sure you’re running Raspberry Pi OS Bookworm or something newer. GPU acceleration features like Wayland and Vulkan support are built into the newer kernels and display servers. If you’re still on Bullseye or Buster, it’s time to upgrade. You’ll get newer Mesa drivers and better compositor performance.

Check your version with:

cat /etc/os-release

Wayland vs X11

Wayland is the modern display server protocol that replaces X11. It handles rendering and compositing more efficiently. On Raspberry Pi 5, Wayland is the default when using the GNOME or Weston desktop environments. It reduces tearing, increases frame rates, and works better with the GPU.

If you’re still using X11, hardware acceleration can still work—but it won’t be as smooth. Wayland + Mutter or Weston is the recommended combo.

Installing and Configuring Drivers

Most GPU drivers come pre-installed, but here’s how to make sure you’re ready:

Update system packages

sudo apt update && sudo apt full-upgrade

Install Vulkan support

sudo apt install vulkan-tools mesa-vulkan-drivers

Check for OpenGL ES 3.1

glxinfo | grep "OpenGL ES"

You should see OpenGL ES 3.1 Mesa in the output.

Enable hardware acceleration flags in Chromium:

chrome://flags

Enable “Override software rendering list” and “GPU rasterization.”

Kernel Parameters

Some advanced users tweak /boot/firmware/config.txt to enable or tune GPU settings. For example:

dtoverlay=vc4-kms-v3d

This line activates Kernel Mode Setting and the V3D driver, which links directly with Mesa’s Gallium3D stack.

Application-Level Acceleration

Browsers (Chromium, Firefox)

GPU acceleration in web browsers like Chromium and Firefox can make a massive difference. Without it, opening YouTube tabs can feel like you’re dragging a boat uphill. With it, video playback smooths out and scrolling is less jerky.

To enable hardware acceleration in Chromium:

Navigate to chrome://flags
Enable:
- Override software rendering list
- GPU rasterization
- Zero-copy rasterizer
Relaunch the browser

To verify it’s working, go to chrome://gpu. If you see “Hardware accelerated” next to most entries, you’re good.

Firefox is a bit trickier. It needs some manual edits in about:config, and support may be limited depending on the version and your compositor.

Multimedia (VLC, MPV)

Media players like VLC and MPV benefit greatly from GPU-backed video decoding. The CPU on a Raspberry Pi 5 can only go so far before it starts dropping frames or overheating. The VideoCore VII GPU offloads video decoding using VAAPI (Video Acceleration API).

In VLC:

Open Preferences > Input/Codecs
Under “Hardware-accelerated decoding,” select VAAPI or Automatic

In MPV, use the terminal:

mpv --hwdec=vaapi video.mp4

This offloads decoding to the GPU, resulting in smoother playback and lower CPU usage.

Image and Video Editing

GIMP uses the GEGL (Generic Graphics Library) backend, which can take advantage of OpenCL if it’s enabled. It’s not perfect on a Pi yet, but some rendering improvements show up when GPU acceleration is active.

Blender, on the other hand, works surprisingly well on Pi 5 for basic projects. Rendering via the GPU using Vulkan (experimental support) can cut render times significantly.

Coding and IDEs

Even lightweight IDEs like Visual Studio Code benefit. GPU acceleration improves font rendering, canvas redraws, and tab switching. It won’t make your code compile faster, but it’ll feel snappier to work in.

Benchmarks and Real-World Tests

glmark2 Results

glmark2 is a popular benchmarking tool that gives a quick overview of how well your system handles 3D graphics. On the Raspberry Pi 5, you can install it with:

sudo apt install glmark2
glmark2

With GPU acceleration enabled (and using the KMS driver with Vulkan support), glmark2 scores on the Pi 5 often land between 2200 to 3000, depending on your cooling setup and desktop environment. That’s a huge leap from the Raspberry Pi 4, which rarely cracked 1000.

This doesn’t just mean higher numbers—it means smoother desktop effects, snappier windows, and fewer slowdowns during media playback or app switching.

Stress Tests and Thermals

With GPU acceleration active, your Pi 5 works harder—and runs hotter. GPU-heavy tasks like 1080p video decoding or 3D rendering can push temps past 75°C without active cooling. That’s warm enough to trigger thermal throttling if you’re not careful.

Cooling recommendations:

At minimum, use a heatsink
Better yet, a fan case or dedicated active cooler
Watch temps with vcgencmd measure_temp

For long-running tasks (Blender renders, video playback), proper cooling keeps performance consistent and avoids dropped frames or crashes.

Troubleshooting and Limitations

Common GPU Issues

Not everything runs smoothly out of the box. Here are a few problems Raspberry Pi 5 users hit when enabling GPU acceleration:

Compositor Crashes: Some setups using Wayland with GNOME or Weston have intermittent crashes when rendering hardware-accelerated apps. Switching to a different compositor or reverting to X11 sometimes helps.
Video Playback Glitches: VLC might stutter or freeze if hardware decoding isn’t properly configured or if the video format isn’t supported by the VAAPI driver.
GPU Not Detected: If vulkaninfo returns an error or glxinfo shows software rendering, check that vc4-kms-v3d is enabled in config.txt.

When It’s Not Worth It

There are cases where GPU acceleration doesn’t help much:

Text Editing and Basic Terminals: These don’t push the GPU hard enough to matter.
Legacy Applications: Some old Linux apps only work with X11 and can crash or perform worse on Wayland.
Headless Systems: If you’re running the Pi without a screen or using it as a server, GPU acceleration is irrelevant.

Sometimes, chasing performance gains introduces more setup complexity than it’s worth. If your system becomes unstable after enabling GPU features, it may be smarter to disable them until driver support improves.

Future Developments

What’s Coming in Software

The Raspberry Pi Foundation and open-source contributors continue to refine Mesa drivers, Vulkan support, and Wayland integration. Current development is focused on:

Improving Vulkan 1.2 compliance for better application support
Fixing compositor bugs in Mutter and Weston
Enabling more aggressive power management to balance performance and thermals

There’s also growing work on KDE’s KWin and GNOME’s Mutter to better handle Pi-specific graphics quirks. These updates should eventually lead to smoother UI animations and fewer crashes in hardware-accelerated environments.

Hardware Expansion Possibilities

The addition of PCIe 2.0 lanes means hardware mods are now real options. Some advanced users are experimenting with:

NVMe SSDs for storage-heavy desktop setups
eGPU hacks via PCIe adapters—though driver support is still spotty
Camera and display extensions with GPU-accelerated encoding/decoding

The Compute Module 5, once released, will likely offer even more I/O flexibility for those building compact but powerful embedded desktops or media boxes.

Final Thoughts

If you’re using the Raspberry Pi 5 as a desktop machine, enabling GPU acceleration is one of the easiest ways to make the experience feel less like a science fair project and more like a functional computer. It doesn’t turn the Pi into a performance monster, but it does smooth out the rough edges—especially for video playback, web browsing, and graphical apps.

Just be aware: you’ll need updated drivers, a decent power supply, and preferably some form of active cooling. Without those, you’ll either run into bugs or end up throttled into oblivion during heavier tasks.

For most users who just want a faster, cleaner interface with better responsiveness, GPU acceleration on the Raspberry Pi 5 is worth the setup time.

FAQs

Does Raspberry Pi 5 support Vulkan out of the box?
Yes, Vulkan 1.2 support is included, but you may need to install vulkan-tools and update your system.

Is Wayland required for GPU acceleration?
Not strictly, but it provides better performance and fewer graphical bugs than X11.

Can I run Blender with GPU acceleration on the Pi 5?
Yes, for lightweight projects. Don’t expect full desktop rendering performance, though.

Do I need a fan for GPU-accelerated tasks?
Strongly recommended. Even basic rendering or playback can push temperatures past 75°C.

Will older apps benefit from GPU acceleration?
Only if they’re designed to use it. Terminal apps or basic editors won’t see any gain.
